MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Oil sump

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Oil sump
EngineOil sump · page 1 of 2
Diagram

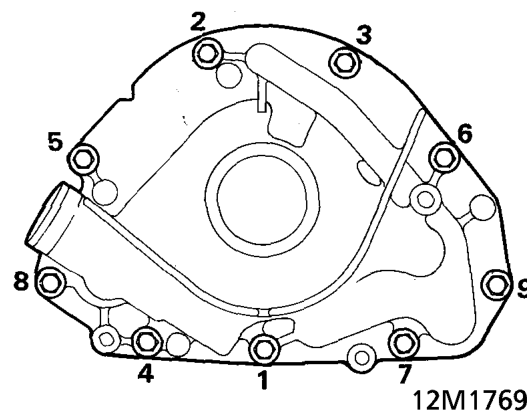

  1. Fit new Patchlok bolts and tighten in sequence shown to 10 Nm.
  2. Fit and tighten bolt securing timing belt rear cover to 9 Nm.
  3. Align engine harness to oil pump, fit bolts and tighten to 10 Nm.
  4. Fit camshaft timing belt. See this section.

OIL SUMP

Service repair no - 12.60.38

Remove

  1. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  2. Drain engine oil. See MAINTENANCE.
Oil sump – Drain engine oil. See MAINTENANCE.

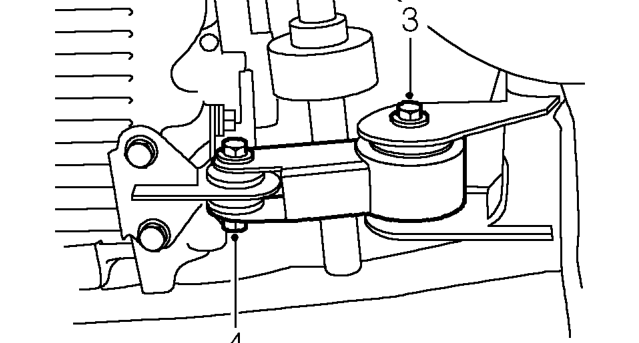

  1. Loosen bolt securing engine rear mount to subframe.
  2. Remove nut and bolt securing engine rear mount to engine.
Oil sump – Remove nut and bolt securing engine rear mount to engine.

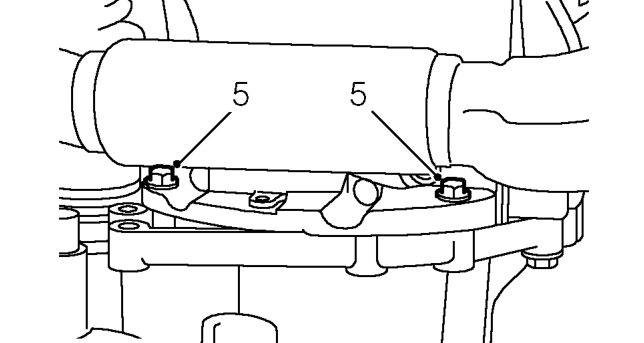

  1. Remove 2 bolts securing oil sump to gearbox.
