ENGINE AND MANUAL GEARBOX ASSEMBLY

Service repair no - 12.37.01/99

Remove

  1. Disconnect battery earth lead.
  2. Remove engine compartment access panel. See BODY, Exterior fittings.
  3. Remove engine cover. See this section.

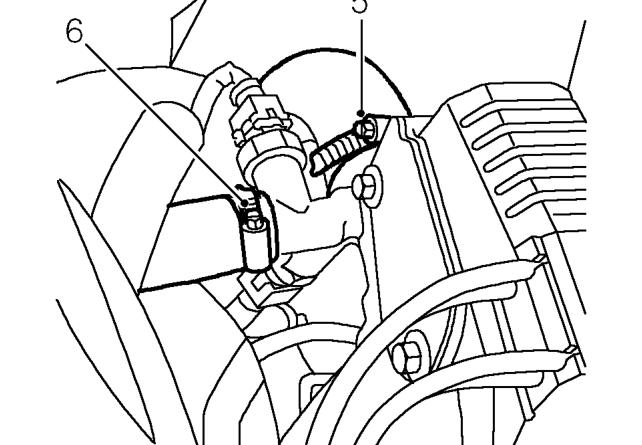

  4. Drain cooling system. See COOLING SYSTEM, Adjustments.
Engine and manual gearbox assembly – Drain cooling system. See COOLING SYSTEM, Adjustments.

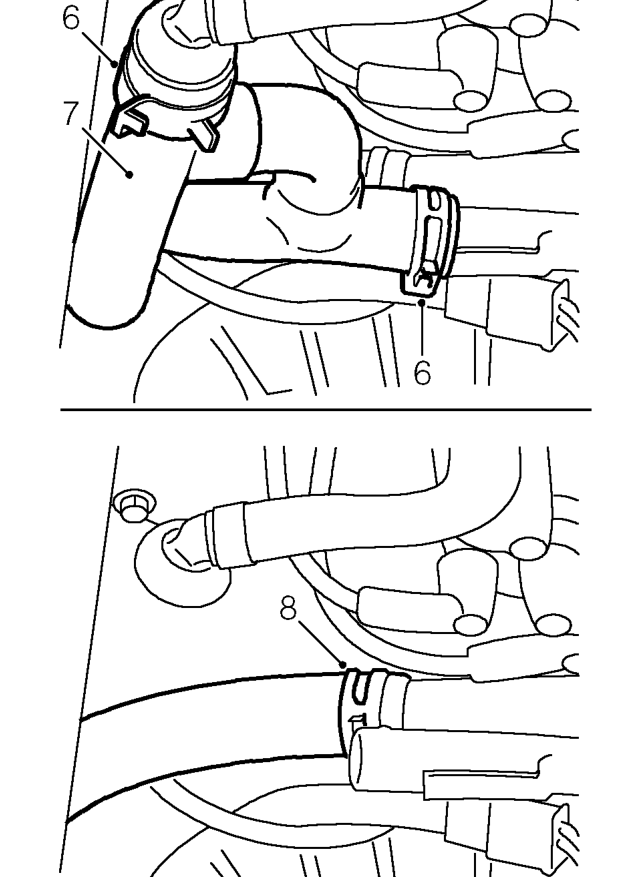

  1. Release clip securing coolant hose to coolant outlet elbow on cylinder head.
Engine and manual gearbox assembly – Release clip securing coolant hose to coolant outlet elbow on cylinder head.
  1. Release 3 clips securing coolant hose assembly between coolant outlet elbow, heater coolant rail, and feed hose to reservoir.
  2. Disconnect hose assembly and position aside.
  3. Release clip and hose from coolant rail.
