MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Engine and manual gearbox assembly (page 4 of 10)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineEngine and manual gearbox assembly · page 4 of 10
Diagram

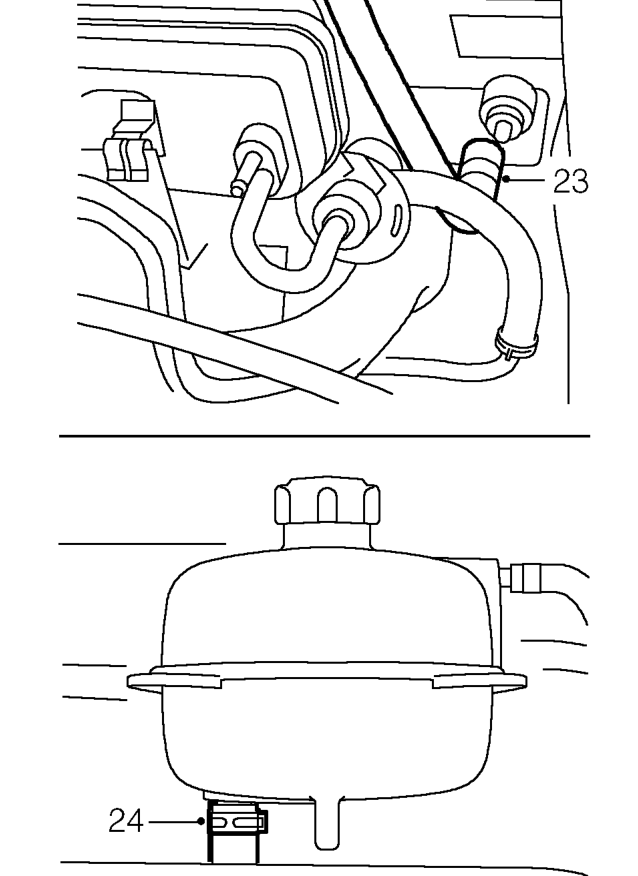

  1. Release clip and coolant hose from inlet manifold.
  2. Release clip and coolant hose from underside of coolant reservoir.
Release clip and coolant hose from underside of coolant reservoir.

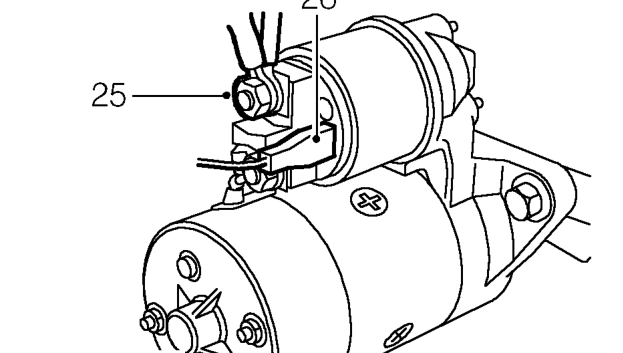

  1. Remove nut securing starter motor feed lead.
  2. Disconnect Lucar from starter motor solenoid and release cable tie from solenoid body.
Disconnect Lucar from starter motor solenoid and release cable tie from solenoid body.

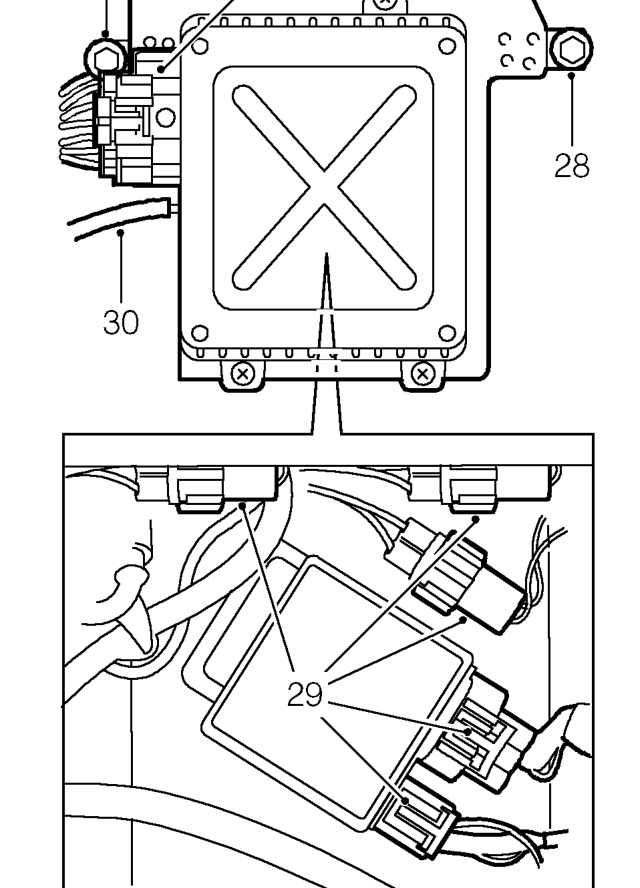

  1. Disconnect multiplug from ECM.
  2. Remove inner bolt and loosen outer bolt securing ECM bracket.
  3. Disconnect engine harness and relay unit multiplugs.
  4. Disconnect vacuum pipe from ECM.
