MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Engine and manual gearbox assembly (page 7 of 10)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineEngine and manual gearbox assembly · page 7 of 10
Diagram

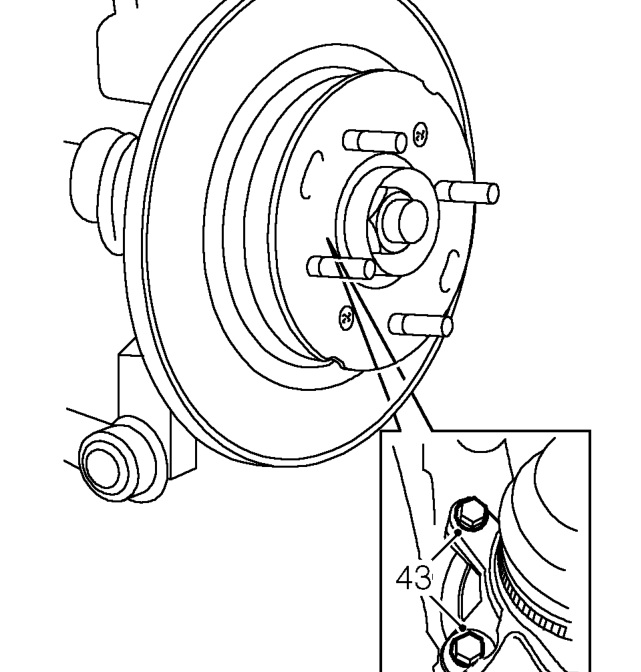

  1. Remove 2 bolts securing rear LH brake caliper to hub. Release caliper and tie aside.
  2. Remove 2 bolts securing rear RH brake caliper to hub. Release caliper and tie aside.
  3. Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

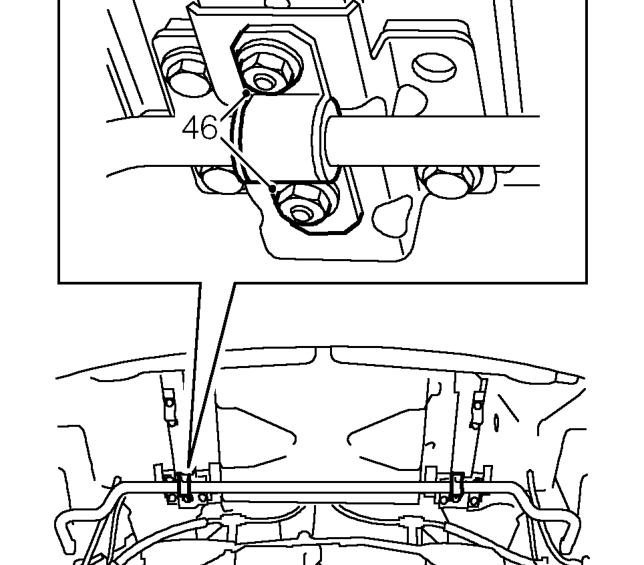

  1. Remove 4 nuts securing anti-roll bar, mounting brackets.
