EngineEngine and manual gearbox assembly · page 5 of 10

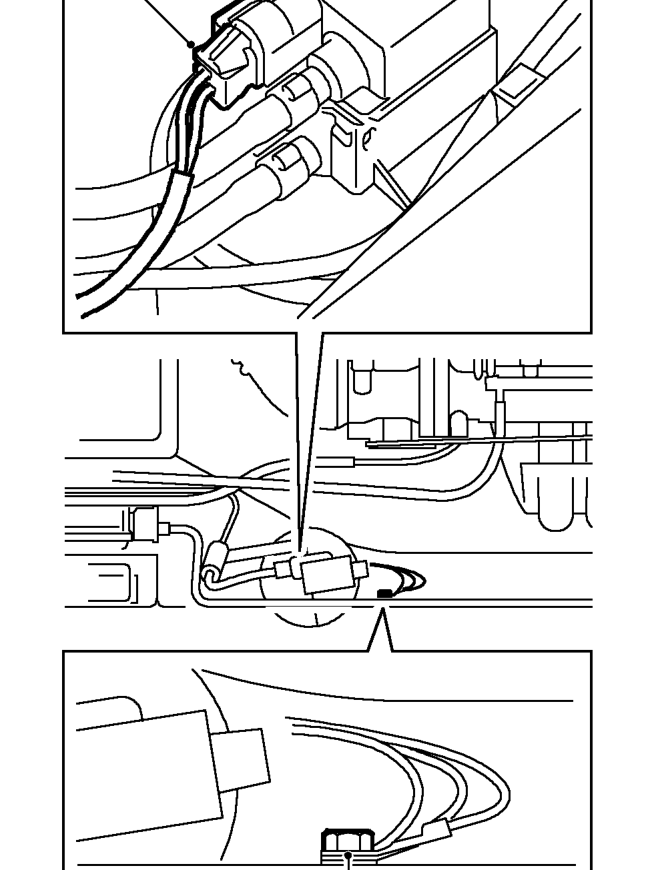

31. Disconnect cannister purge valve, multiplug.
32. Remove engine harness earth bolt from body and release 3 earth leads.

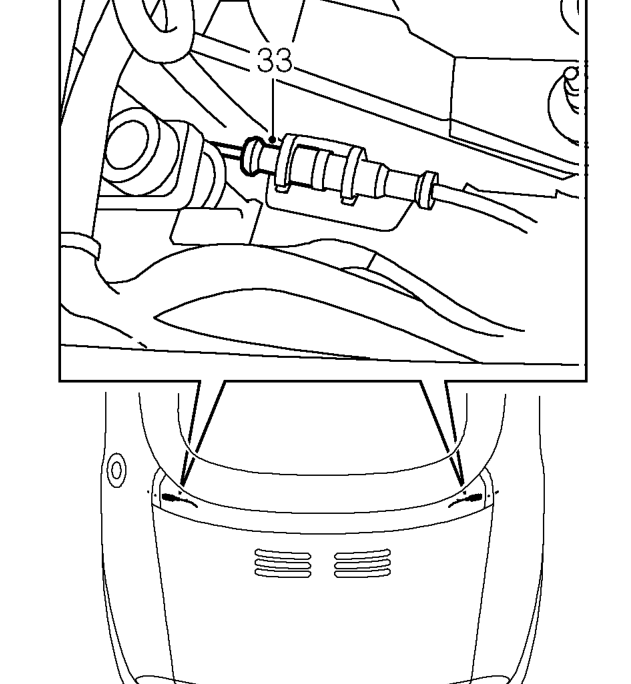

33. Release LH and RH, rear ABS sensor leads from clips and disconnect.
