MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Engine and manual gearbox assembly (page 8 of 10)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineEngine and manual gearbox assembly · page 8 of 10
Diagram

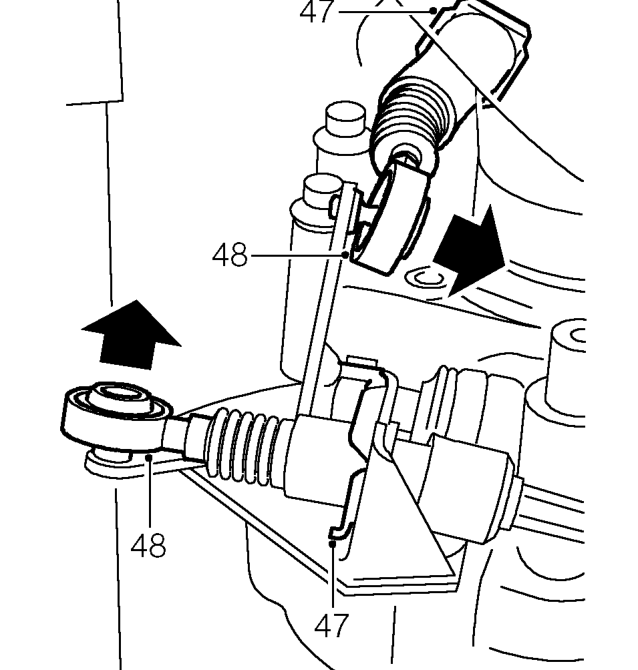

  1. Remove and discard clips securing selector cables to gearbox abutment brackets.
  2. Release selector cables from selector linkage and position cables aside.
Release selector cables from selector linkage and position cables aside.

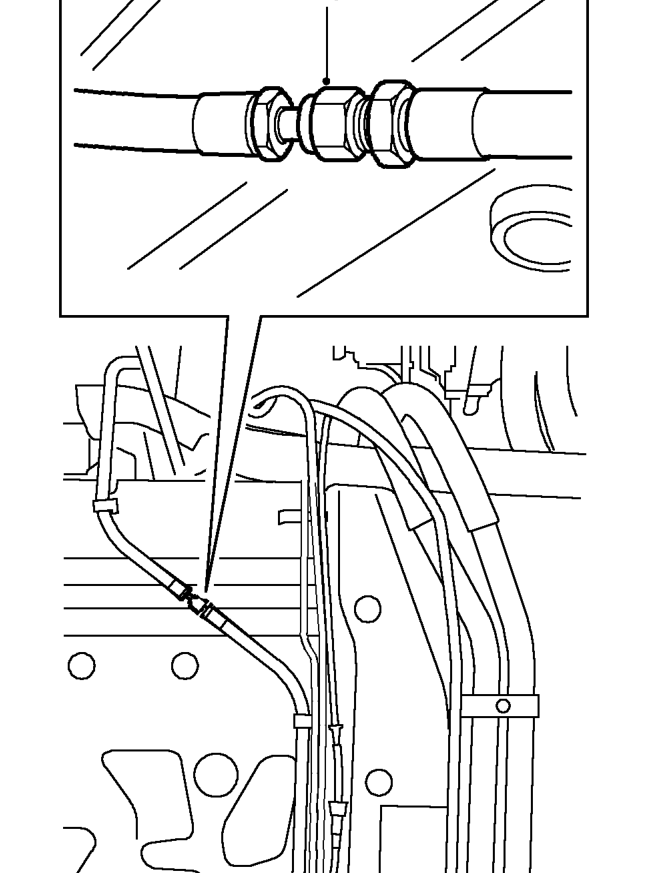

  1. Disconnect both sides of Hydragas system by breaking union joints under floor pan.

CAUTION: Plug the connections.
