Engine and manual gearbox assembly (page 6 of 10)

Make

MG

Model

MGF Factory Workshop Manual

Year

1995–2000

Section

Repairs

EngineEngine and manual gearbox assembly · page 6 of 10

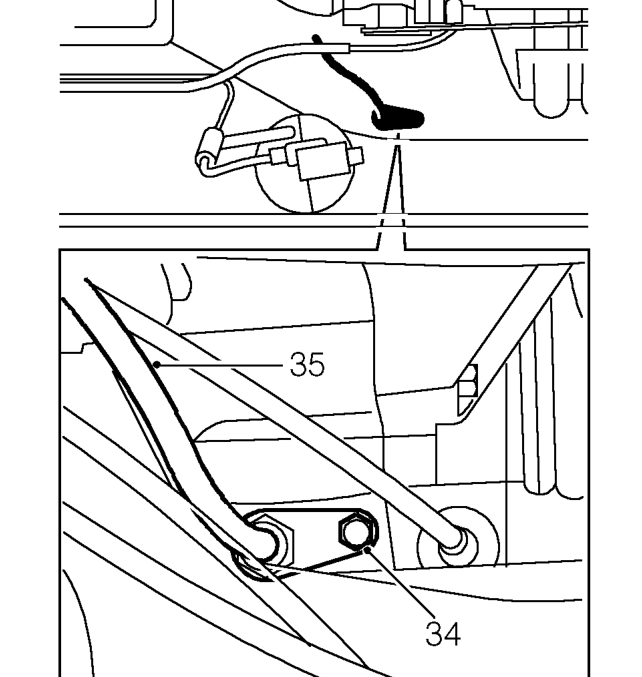

34. Remove bolt securing speedometer cable to gearbox.
35. Release speedometer cable from gearbox.
36. Depressurise Hydragas system. See FRONT SUSPENSION, Adjustments.
37. Raise vehicle on a 2 post ramp.
38. Remove road wheel(s).

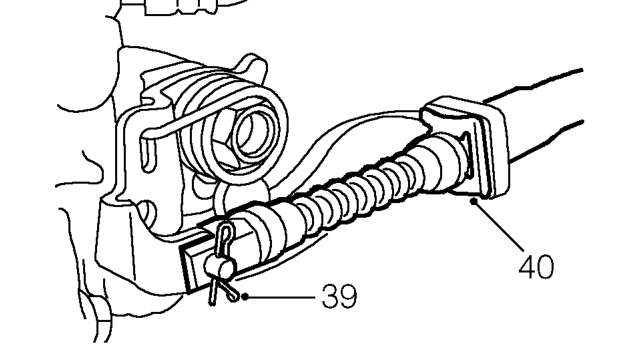

39. Remove and discard ’R’ clip and remove clevis pin securing LH handbrake cable to caliper.
40. Remove and discard clip securing LH handbrake cable to caliper abutment bracket, release cable and position aside.
41. Remove and discard ’R’ clip and remove clevis pin securing RH handbrake cable to caliper.
42. Remove and discard clip securing RH handbrake cable to caliper abutment bracket, release cable and position aside.

05 Engine
