05 · Engine

Engine and manual gearbox assembly (page 2 of 10)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineEngine and manual gearbox assembly · page 2 of 10
Diagram

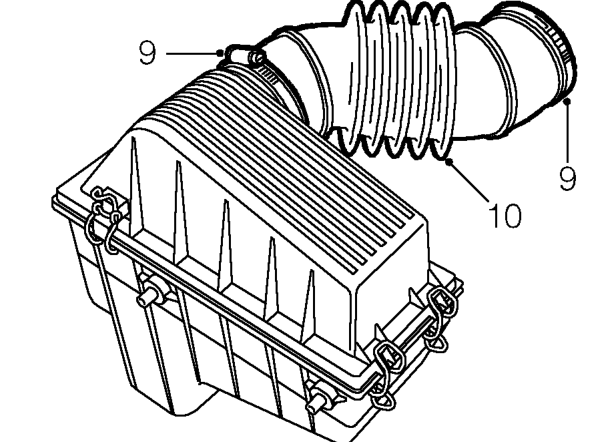

  1. Release clips securing air intake pipe between air cleaner and throttle body.
  2. Remove air intake pipe.
Remove air intake pipe.

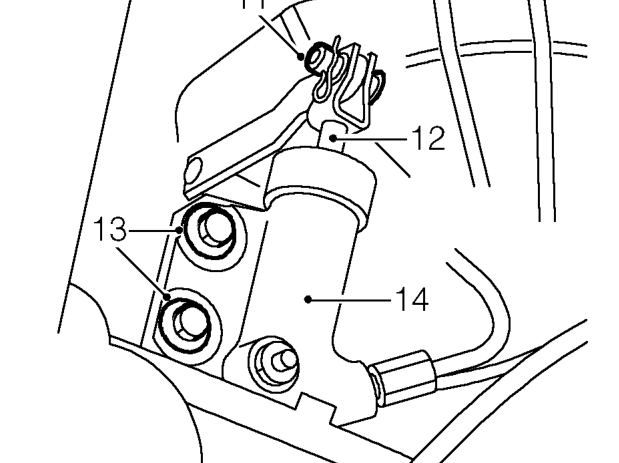

  1. Remove ’R’ clip, washer and clevis pin securing clutch slave cylinder push rod to release lever.
  2. Remove clutch slave cylinder push rod.
  3. Remove 2 bolts securing clutch slave cylinder to mounting bracket.
  4. Position clutch slave cylinder aside.
Position clutch slave cylinder aside.

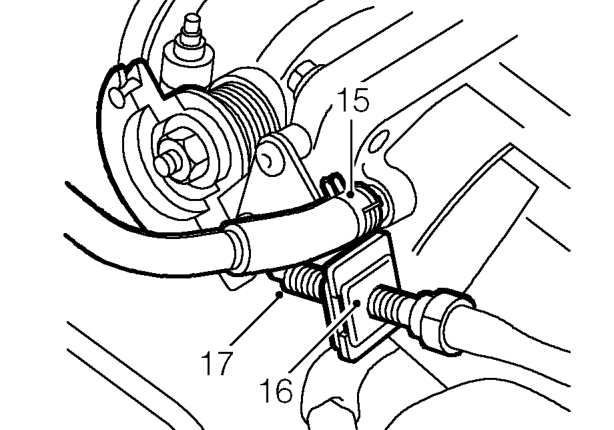

  1. Release clip and pipe running from cannister purge valve to throttle body.
  2. Disconnect throttle cable from throttle body abutment and throttle cam.
  3. Release throttle cable from inlet manifold clip and position cable aside.
