MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Engine and manual gearbox assembly (page 3 of 10)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineEngine and manual gearbox assembly · page 3 of 10

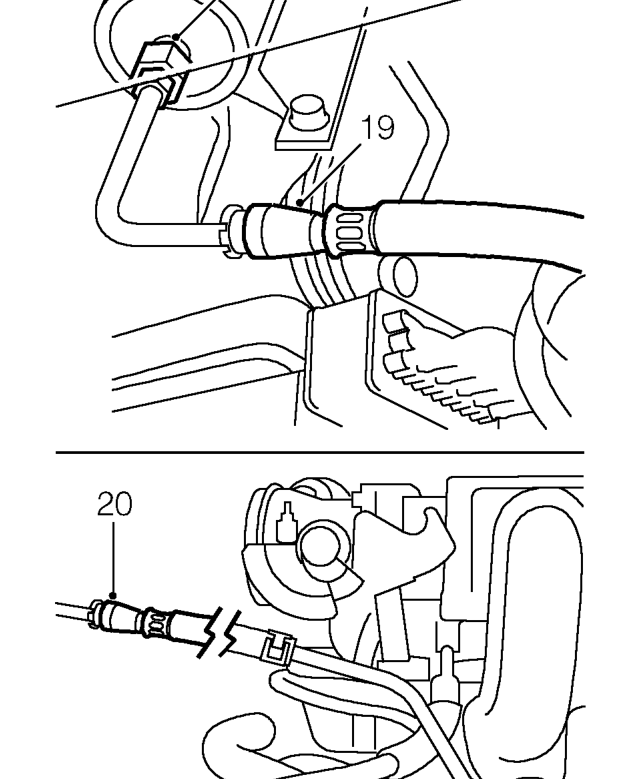

Diagram
  1. Position absorbent cloth around fuel filter union. Loosen union to relieve fuel pressure, retighten to 30 Nm.
  2. Release fuel feed hose from fuel filter.
  3. Release fuel return hose from pipe.

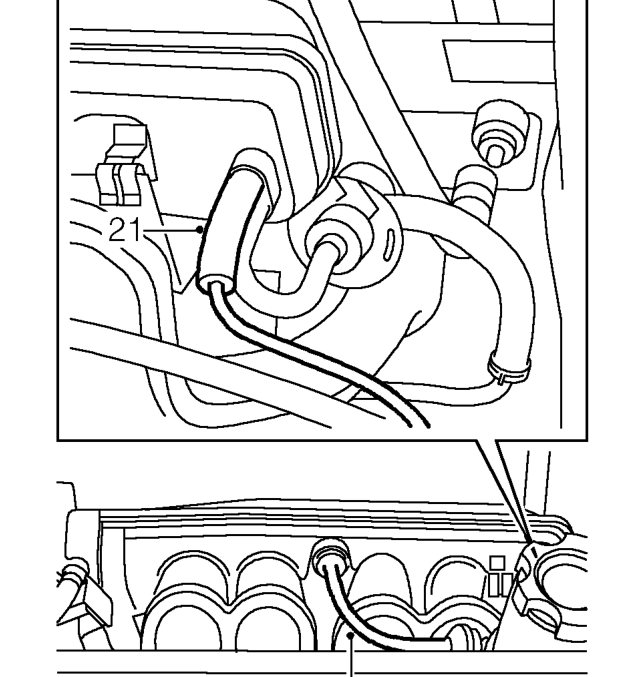

Release fuel return hose from pipe.
  1. Disconnect ECM vacuum pipe from inlet manifold.
  2. Release vacuum pipe from inlet manifold.
