EngineEngine and manual gearbox assembly · page 9 of 10

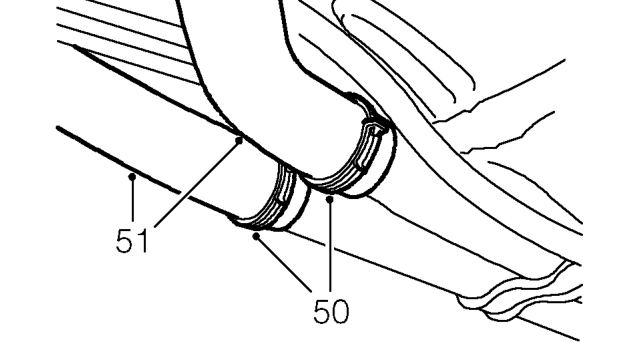

- Release clips securing coolant hoses to coolant rail under vehicle.
- Release coolant hoses.

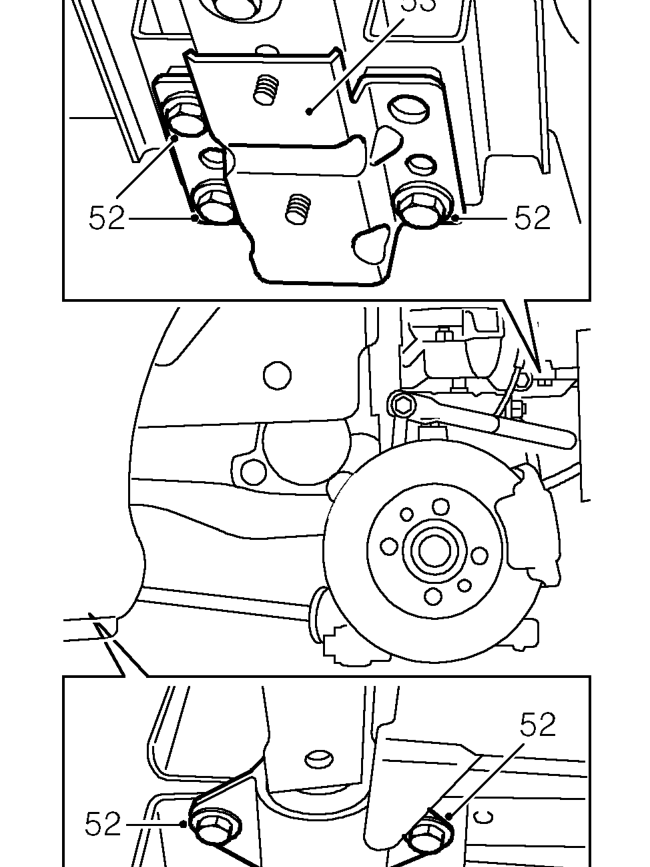

- Place engine table underneath rear of car, and lower ramp. When engine and rear subframe is supported by table, remove 4 front bolts, and 6 rear bolts securing subframe to body.
- Collect rear anti-roll bar, mounting brackets.
- Carefully raise ramp and guide engine and subframe from body.
CAUTION: Ensure subframe is securely held on engine table.
