EngineRemoval - Engines fitted with manual timing belt tensioner

Removal - Engines fitted with manual timing belt tensioner

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove timing belt upper front cover. See this section.
Removal - engines fitted with manual timing belt tensioner – Remove timing belt upper front cover. See this section.

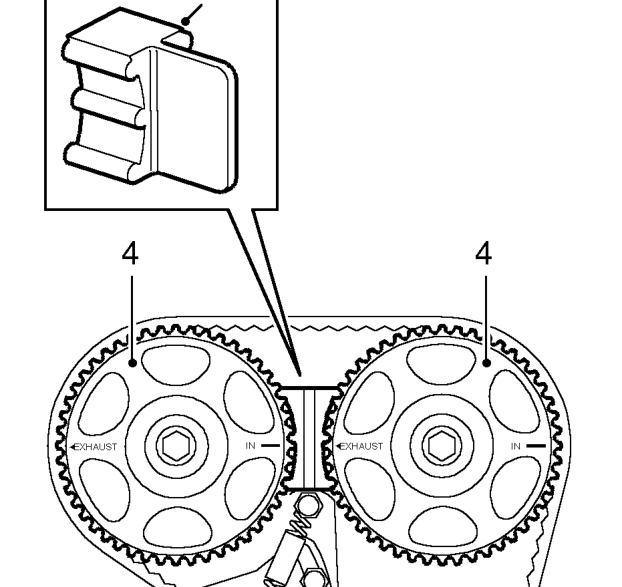

  1. Using a socket and extension bar on crankshaft pulley bolt, rotate crankshaft clockwise and align camshaft gear timing marks with mark on backplate - 90° BTDC.

CAUTION: Do not use camshaft gears, gear retaining bolts or timing belt to rotate crankshaft.

  1. Fit camshaft gear locking tool 18G 1570.
  2. Support engine on a jack.

CAUTION: Place a block of wood between engine and jack to avoid damaging sump.

Removal - engines fitted with manual timing belt tensioner – Support engine on a jack.

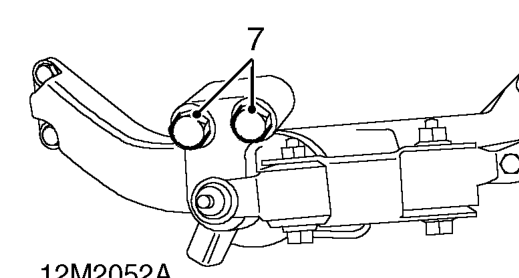

  1. Remove 2 bolts securing RH mounting bracket to engine.
