EngineEngine and gearbox assembly - sequential auto (EM-CVT) · page 2 of 9
Diagram
  1. Loosen unions on hydragas units and release pipes, remove and discard ’O’ rings.

CAUTION: Plug the connections.

Loosen unions on hydragas units and release pipes, remove and discard ’O’ rings.

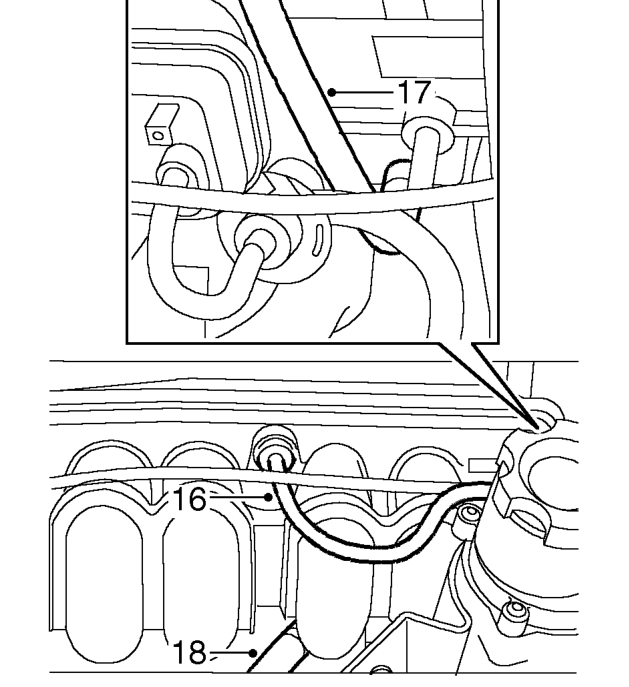

  1. Release vacuum pipe from inlet manifold.
  2. Release clip and coolant hose from inlet manifold.
  3. Release clip and coolant hose from coolant rail.
Release clip and coolant hose from coolant rail.

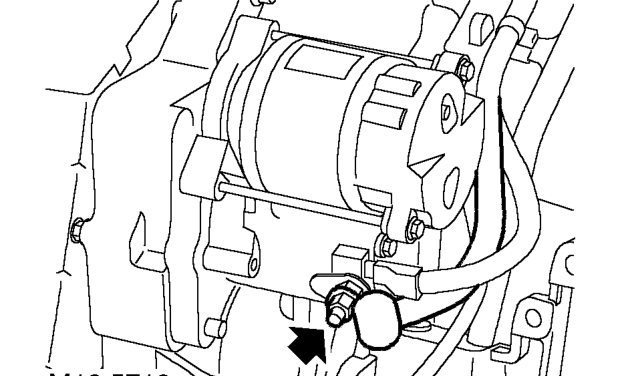

  1. Remove nut securing starter motor feed lead.
Remove nut securing starter motor feed lead.

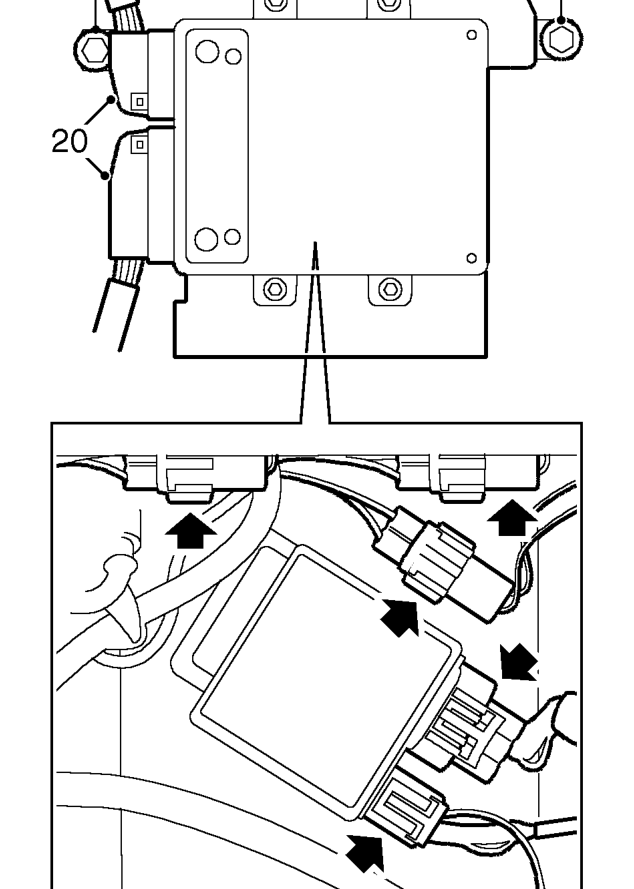

  1. Disconnect multiplugs from ECM.
  2. Remove inner bolt and loosen outer bolt securing ECM bracket.
  3. Disconnect engine harness and relay unit multiplugs.
