MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Engine mounting - rear (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineEngine mounting - rear · page 2 of 3

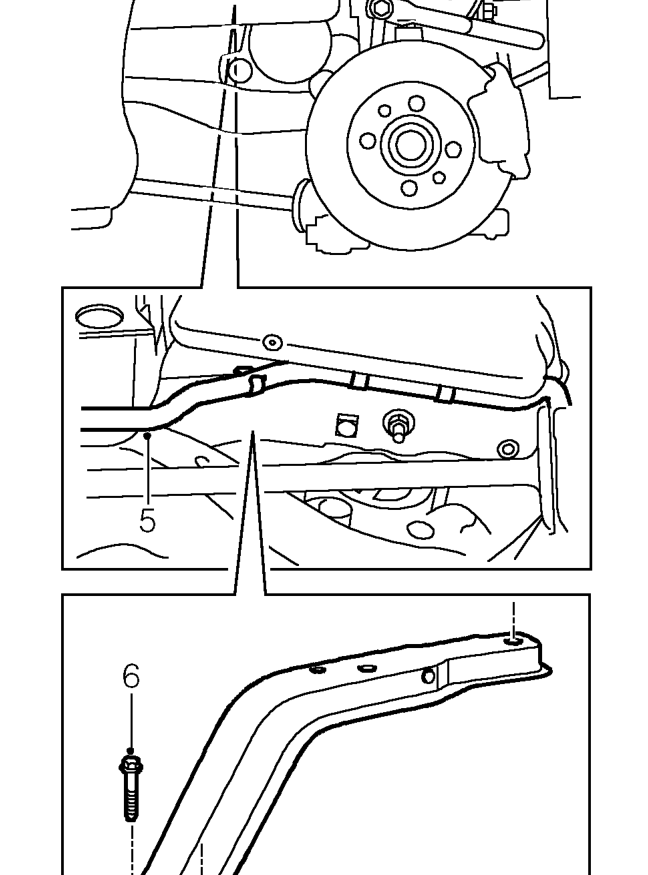

Diagram
  1. Release Hydragas pipe from buttress.
  2. Remove 4 bolts securing buttress to subframe.
  3. Raise height of engine to remove buttress.

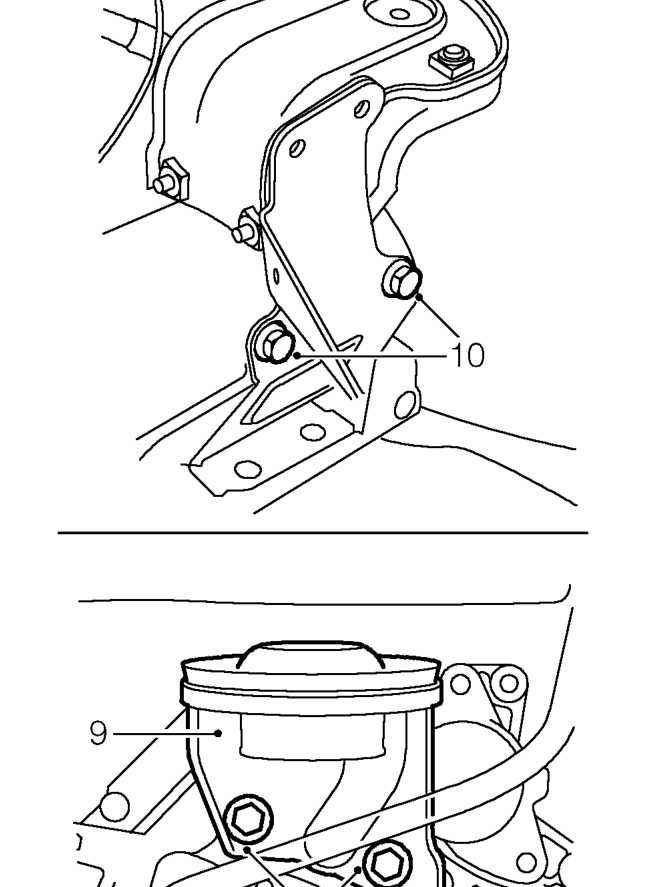

Raise height of engine to remove buttress.
  1. Remove 2 bolts securing engine mounting bracket to gearbox.
  2. Remove engine mounting and bracket.
  3. Remove 2 bolts securing mounting to bracket.
