Engine mounting - LH - steptronic (EM-CVT) models (page 2 of 2)

13. Remove nut and bolt securing engine mounting to buttress.
14. Raise engine on jack to access engine mounting bolts.

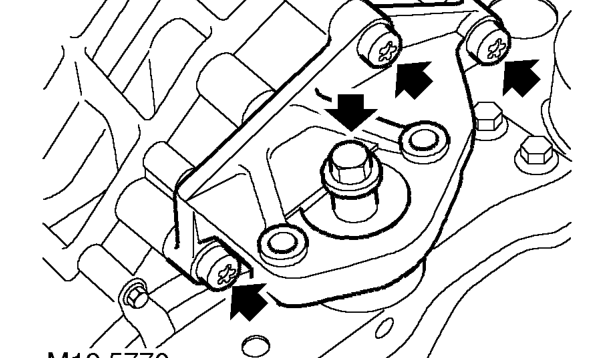

15. Remove 3 Torx bolts securing engine mounting to gearbox and remove mounting.

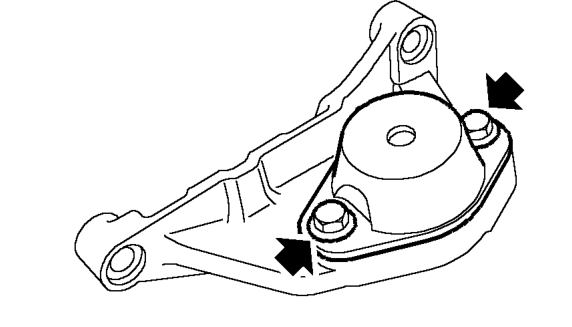

16. Remove 2 bolts securing mounting to bracket.

Refit

1. Fit engine mounting to bracket and tighten bolts to 45 Nm.
2. Fit engine mounting to gearbox and tighten Torx bolts to 48 Nm.
3. Lower engine and align engine mounting to buttress.
4. Fit and tighten nut and bolt securing LH mounting to buttress to 82 Nm.
5. Fit new ’O’ ring to pipe and connect to hydragas unit.
6. Tighten hydragas union to 20 Nm.
7. Connect air intake hose to resonator and secure with clip.
8. Position air cleaner support bracket, fit and tighten bolts.
9. Connect cables to clips.
10. Fit fuel filter to support bracket and secure with nuts.
11. If fitted, position resonator to fixing holes, fit spacers and secure with bolts.
12. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
13. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, General data.
14. Remove stand(s) and lower vehicle.
15. Pressurise hydragas system and set correct trim height. See SUSPENSION, Adjustments.
