Engine - L SeriesAll models · page 1 of 2

All models

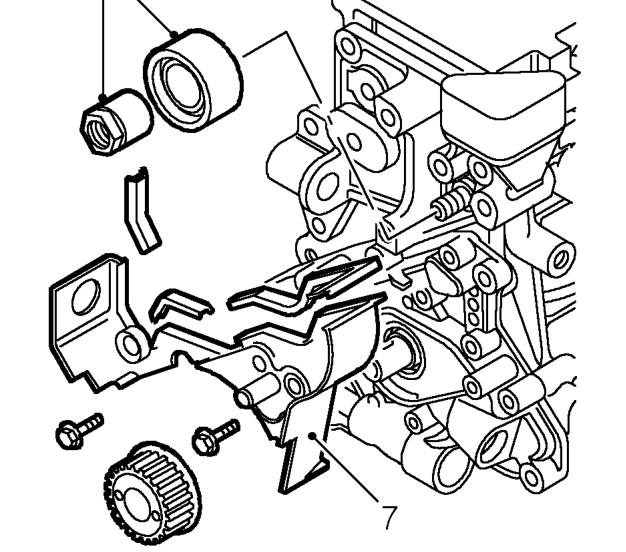

  1. Raise engine sufficiently to gain access to timing belt idler pulley centre nut.
All models – Raise engine sufficiently to gain access to timing belt idler pulley centre nut.
  1. Remove idler pulley centre nut and remove pulley.

NOTE: Idler pulley mounting stud may be unscrewed as nut is removed.

  1. Remove 3 bolts securing lower half of timing belt rear cover to engine, remove cover and seals.
  2. Position container to collect fluid loss.
All models – Position container to collect fluid loss.

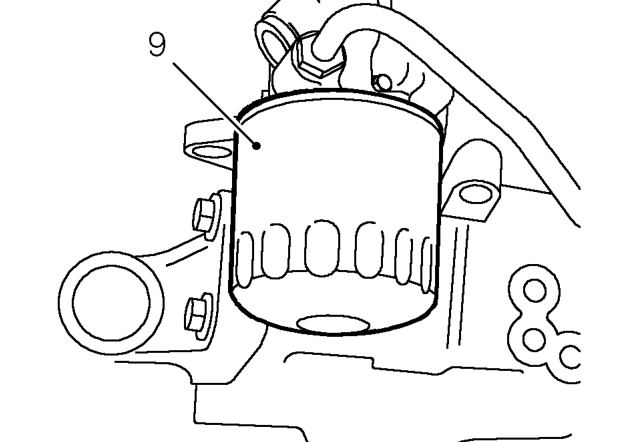

  1. Remove oil filter.
All models – Remove oil filter.

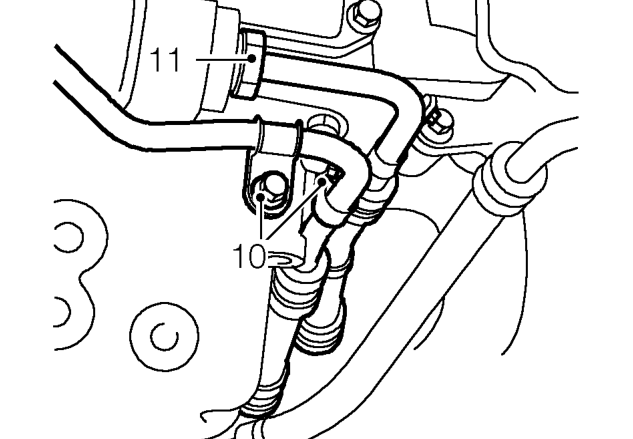

  1. Remove bolt securing oil cooler pipe clip to bracket on coolant pump mounting.
  2. Loosen oil cooler pipe union on pump and disconnect pipe from pump.
  3. Remove and discard ’O’ ring.

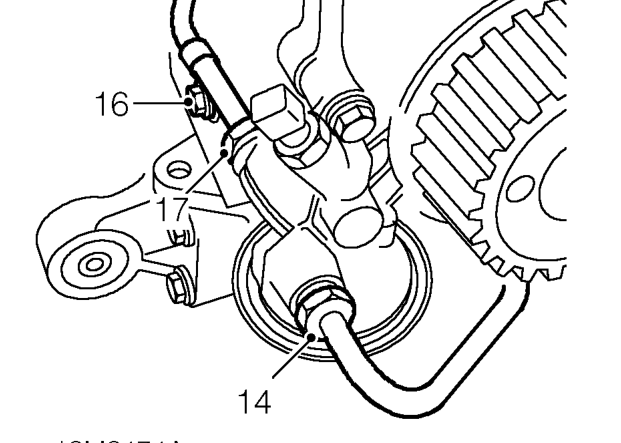

  4. Remove 2 bolts securing oil cooler pipe clip to sump.
All models – Remove 2 bolts securing oil cooler pipe clip to sump.
  1. Loosen oil cooler pipe union on pump and disconnect pipe from pump.
  2. Remove and discard ’O’ ring.
  3. Remove bolt securing turbocharger oil feed pipe clip to cylinder block.
  4. Loosen union and disconnect turbocharger oil feed pipe from pump.
  5. Remove and discard ’O’ ring.
