Engine steady bar - upper

Refit

1. Clean engine mounting bracket, dowels and dowel holes.
2. Fit engine mounting and engine bracket.
3. Tighten bolts bracket to engine to 105 Nm.
4. Fit nut mounting to engine bracket but do not tighten.
5. Fit safety bar to mounting and align mounting to body. Tighten bolts to 45 Nm.
6. Remove supporting jack.
7. Tighten nut mounting to engine bracket to 80 Nm.
8. Align steady bar to engine mounting fit through bolt but do not tighten.
9. Tighten steady bar bolts to 80 Nm. Through bolt to body first.
10. Align PAS fluid reservoir mounting bracket and fit bolts.
11. Fit underbelly panel. See BODY, Exterior fittings.

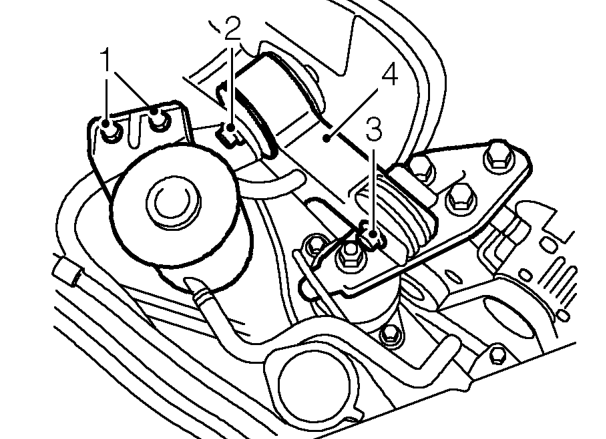

ENGINE STEADY BAR - UPPER

Service repair no - 12.45.16

Remove

1. Remove 2 bolts securing PAS fluid reservoir to body and move aside for access to steady bar through bolt.
2. Remove through bolt securing steady bar to body.
3. Remove through bolt securing steady bar to engine mounting.
4. Remove steady bar.

Refit

1. Align steady bar to body fit through bolt and tighten to 80 Nm.
2. Align steady bar to engine mounting fit bolt and tighten to 80 Nm.
3. Align PAS mounting bracket and secure with 2 bolts.
