Engine mounting - RH

Refit

1. Fit engine mounting to body and tighten bolts to 45 Nm.
2. Raise unit on jack and align bracket on gearbox with engine mounting.
3. Fit bolts securing mounting to bracket
4. and tighten to 45 Nm.
5. Remove jack.
6. Fit battery tray assembly.
7. Fit 4 bolts and 1 nut securing battery tray.
8. Connect dim dip resistor multiplug.
9. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
10. Fit underbelly panel. See BODY, Exterior fittings.

ENGINE MOUNTING - RH

Service repair no - 12.45.12

Remove

1. Remove underbelly panel. See BODY, Exterior fittings.

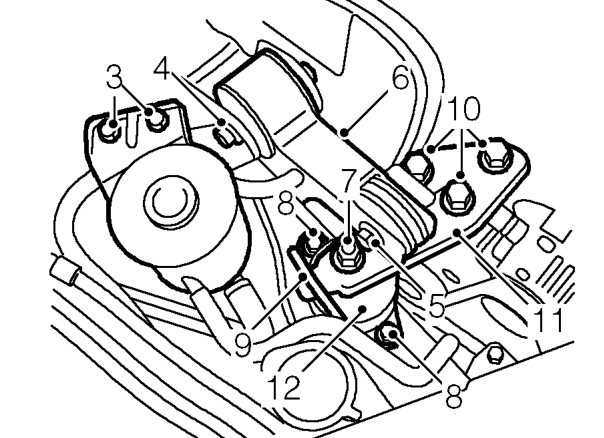

2. Fit wooden block to jack and position jack to support engine.

3. Remove 2 bolts from PAS fluid reservoir bracket and move aside for access to steady bar to body through bolt.
4. Loosen through bolt steady bar to body.
5. Remove through bolt securing steady bar to engine mounting bracket.
6. Pivot steady bar for access.
7. Remove nut engine bracket to mounting.
8. Remove 2 bolts securing safety bar and engine mounting to body.
9. Remove safety bar.
10. Remove 3 bolts securing engine mounting bracket to engine.
11. Remove RH engine mounting bracket.
12. Remove RH mounting.
