ENGINE STEADY BAR - LOWER

Service repair no - 12.45.17

Remove

  1. Remove underbelly panel. See BODY, Exterior fittings.

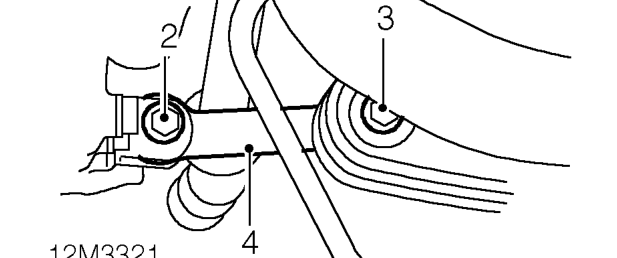

Engine steady bar - lower – Remove underbelly panel. See BODY, Exterior fittings.
  1. Remove through bolt securing steady bar to engine bracket.
  2. Remove through bolt securing steady bar to subframe.
  3. Remove steady bar.

Refit

  1. Clean area of subframe where engine steady bar is fitted.
  2. Align steady bar to subframe fit through bolt and tighten to 100 Nm.
  3. Align steady bar to engine bracket, fit bolt and tighten to 100 Nm.
  4. Fit underbelly panel. See BODY, Exterior fittings.

FLYWHEEL

Service repair no - 12.53.07

Remove

  1. Remove clutch assembly. See CLUTCH, Repairs.
  2. Remove CKP sensor. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

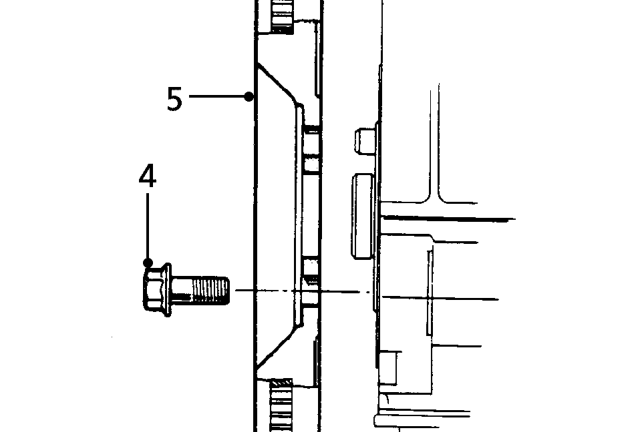

Flywheel – Remove CKP sensor. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Remove and discard 6 bolts securing flywheel to crankshaft.
  2. Remove flywheel locking pin tool 18G 1523.
  3. Remove flywheel from crankshaft.

NOTE: Dowel located.
