Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

Oil pressure switch

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Oil pressure switch
Engine - L SeriesOil pressure switch

OIL PRESSURE SWITCH

Service repair no - 12.60.50

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove underbelly panel. See BODY, Exterior fittings.
  2. Position drain tin below engine oil filter.

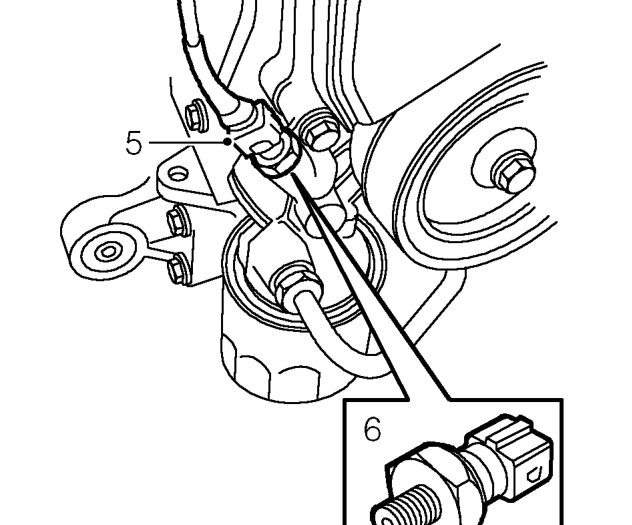

Oil pressure switch – Position drain tin below engine oil filter.
  1. Disconnect multiplug from oil pressure switch.
  2. Remove oil pressure switch.

Refit

  1. Clean oil pressure switch threads.
  2. Apply Loctite 577 to threads of switch, fit switch and tighten to 16 Nm..
  3. Connect multiplug to oil pressure switch.
  4. Fit underbelly panel. See BODY, Exterior fittings.
  5. Remove stand(s) and lower vehicle.
  6. Top-up engine oil. See MAINTENANCE.
  7. Connect battery earth lead.
