ENGINE MOUNTING - LH

Service repair no - 12.45.11

Remove

  1. Remove underbelly panel. See BODY, Exterior fittings.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Engine mounting - lh – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Disconnect dim dip resistor multiplug from engine harness.
  2. Remove 4 bolts and a nut securing battery tray.
  3. Remove battery tray.
  4. Fit wooden block to jack and position jack to support gearbox.
Engine mounting - lh – Fit wooden block to jack and position jack to support gearbox.

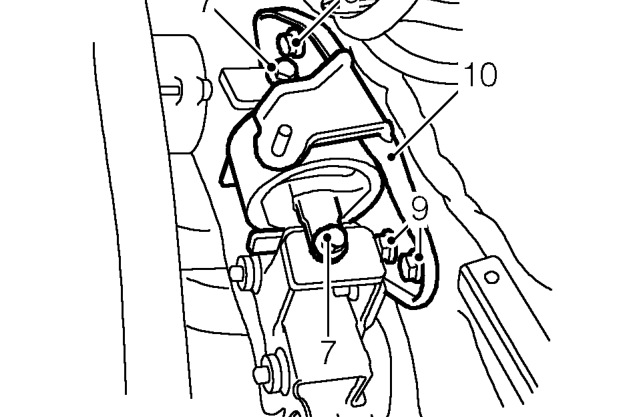

  1. Remove 2 bolts securing engine mounting to bracket on gearbox.
  2. Lower gearbox on jack sufficiently only for access to mounting bolts.
  3. Remove 4 bolts securing engine mounting to body.
  4. Remove engine mounting.
