CAMSHAFT TIMING BELT LOWER COVER

Service repair no - 12.65.43

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove timing belt upper cover. See this section.
  2. Remove crankshaft pulley. See this section.

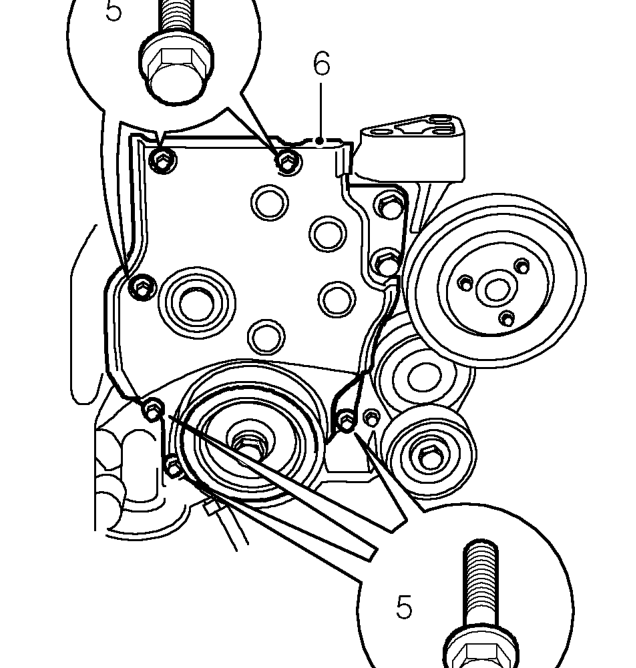

Camshaft timing belt lower cover – Remove crankshaft pulley. See this section.
  1. Remove 6 bolts securing lower cover.
  2. Remove lower cover.

Refit

  1. Check sealing strips are correctly located in cover.
  2. Fit lower cover to engine and tighten bolts to 5 Nm.
  3. Fit crankshaft pulley. See this section.
  4. Fit timing belt upper cover. See this section.
  5. Remove stand(s) and lower vehicle.
  6. Connect battery earth lead.
