Engine - L SeriesCylinder head gasket · page 1 of 3
Diagram

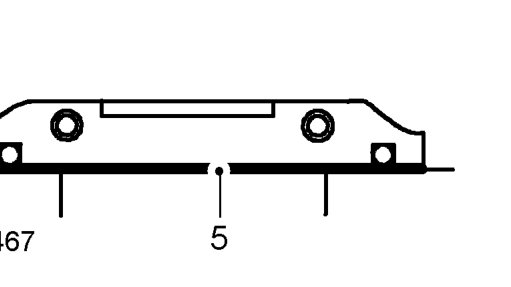

  1. Apply a 1 mm thick bead of sealant from kit, part number GUG 705963GM along joint line of seal housing, rear main bearing cap and cylinder block.

CAUTION: Do not apply sealant until immediately prior to fitting sump, do not spread sealant bead.

  1. Fit sump.See this section.
  2. Fit flywheel. See this section.

CYLINDER HEAD GASKET

Service repair no - 12.29.02

Remove

  1. Remove FIP timing belt cover. See this section.
  2. Remove camshaft timing belt upper cover. See this section.

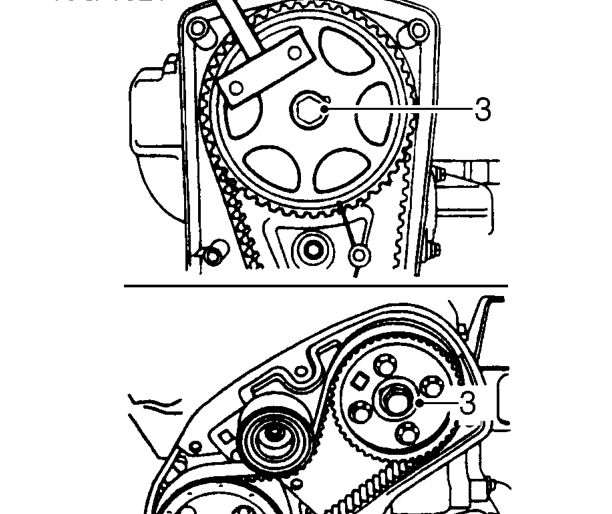

Cylinder head gasket – Remove camshaft timing belt upper cover. See this section.
  1. Restrain camshaft pulley using 18G 1521 and loosen bolts securing camshaft and FIP belt drive gears.
  2. Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
  3. Remove RH road wheel.
