Camshaft timing belt upper cover

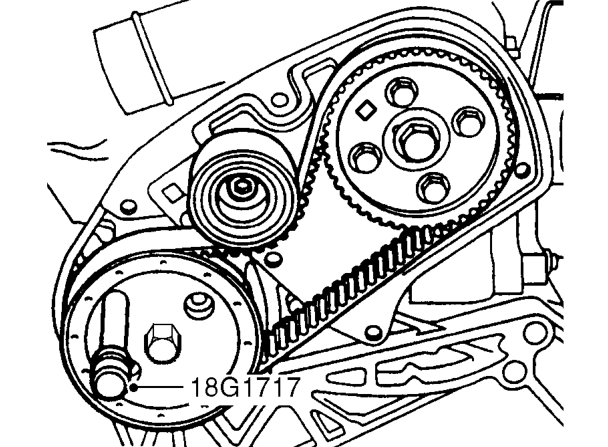

24. Insert locking pin 18G 1717 through injection pump drive gear and into hole in adapter plate.

CAUTION: To ensure injection pump timing is correct, locking pin must be a sliding fit. If pin is a tight fit, adjustment procedure must be repeated.

25. On completion, remove timing pin 18G 1523 and locking pin 18G 1717.
26. Clean mating face of engine mounting, clean dowel and dowel hole.
27. Fit engine mounting bracket to engine and tighten bolts to 105 Nm.
28. Lower engine and align RH mounting to body.
29. Fit safety bar and tighten bolts mounting to body to 45 Nm.
30. Remove supporting jack.
31. Tighten nut securing engine bracket to mounting to 80 Nm.
32. Align steady bar to mounting and tighten tighten bolts to 80 Nm, tighten through bolt to body first.
33. Align PAS fluid reservoir to body and fit bolts.

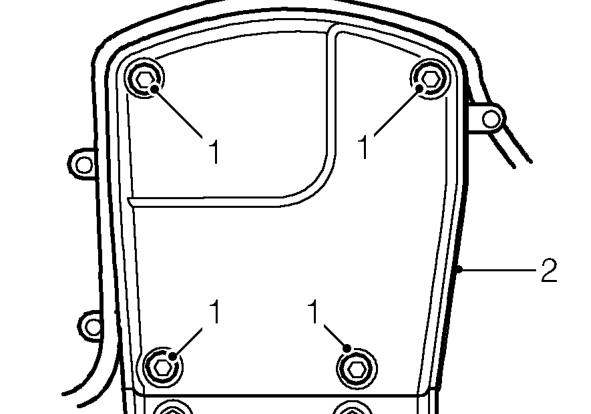

CAMSHAFT TIMING BELT UPPER COVER

Service repair no - 12.65.41

Remove

1. Remove 4 bolts securing timing belt upper cover to rear cover.
2. Remove timing belt upper cover.

Refit

1. Check sealing strips are correctly located in cover.
2. Fit timing belt upper cover and tighten bolts to 5 Nm.
