Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

All Models

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › All Models
Engine - L SeriesAll Models

All Models

All models

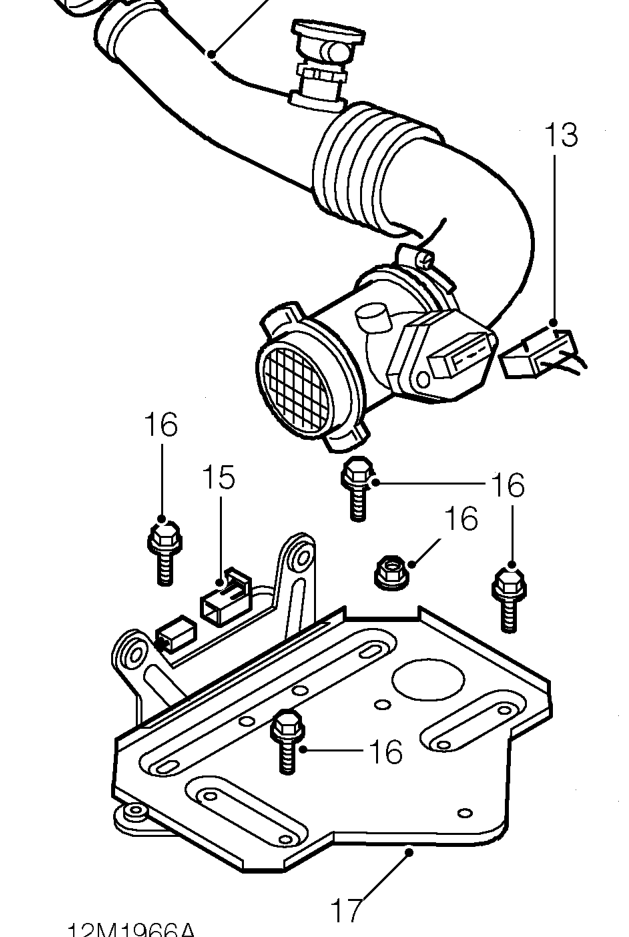

  1. Disconnect multiplug from MAF sensor.
  2. Loosen clip and remove air hose from turbocharger.
  3. Disconnect dim dip resistor multiplug from engine harness.
  4. Remove 4 bolts and a nut securing battery tray.
  5. Remove battery tray.
All models – Remove battery tray.

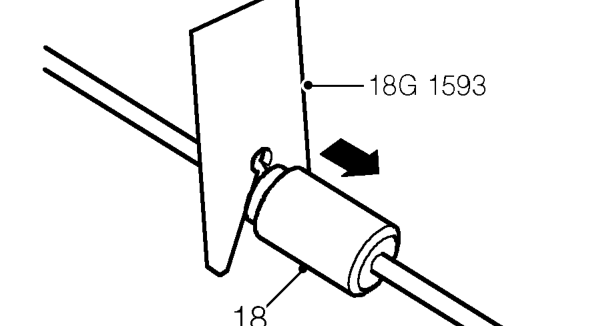

  1. Use 18G 1593 to release, then disconnect clutch fluid hose.
  2. Release LH drive shaft from gearbox, as detailed in LH Differential oil seal. See MANUAL GEARBOX - ’PG1’, Repairs.
  3. Release RH drive shaft from gearbox, as detailed in RH Differential oil seal. See MANUAL GEARBOX - ’PG1’, Repairs.
All models – Release RH drive shaft from gearbox, as detailed in RH Differential oil seal. See MANUAL G

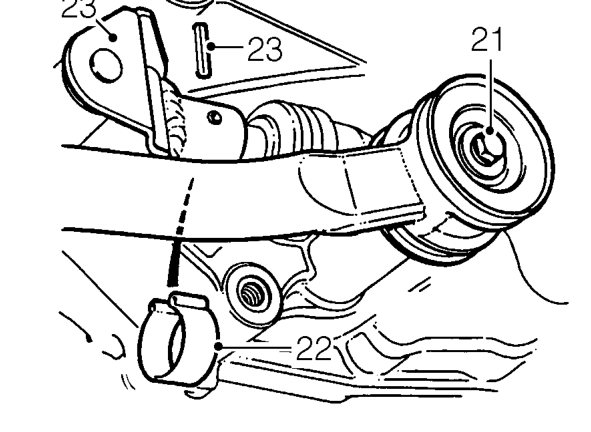

  1. Remove bolt and disconnect gear change steady bar from gear box, collect 2 washers.
  2. Remove clip retaining selector rod roll pin.
  3. Using a suitable punch, drive out roll pin and release selector rod from shaft.
  4. Tie selector rod and steady bar aside.
