Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

Models with air conditioning

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Models with air conditioning
Engine - L SeriesModels with air conditioning · page 1 of 2
Diagram

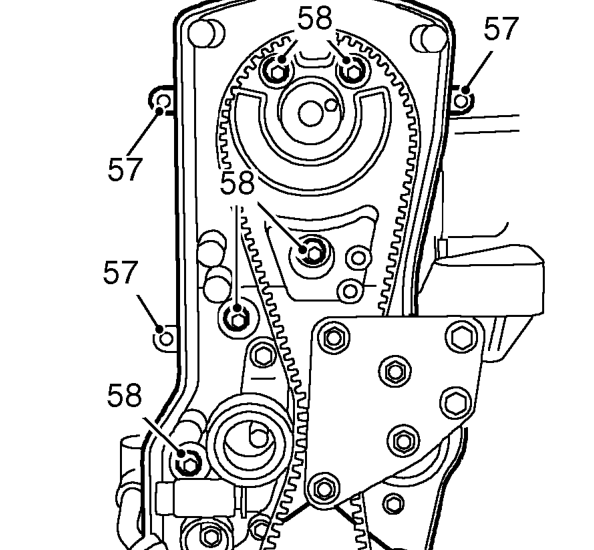

  1. Release engine harness clips from camshaft drive belt rear cover.
  2. Remove 5 bolts and remove camshaft timing belt rear cover.
Remove 5 bolts and remove camshaft timing belt rear cover.

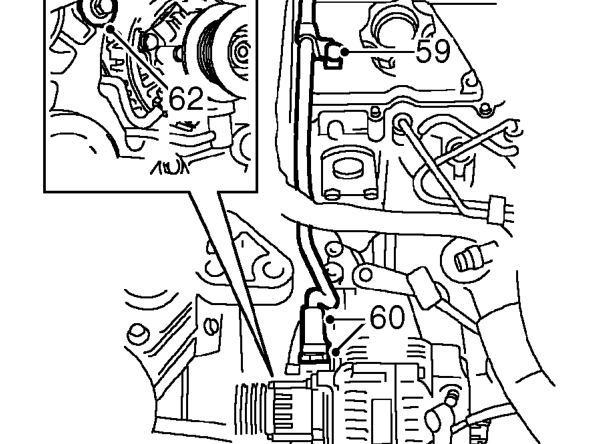

  1. Remove bolt securing brake servo vacuum pipe to camshaft cover.
  2. Release clip and disconnect brake servo vacuum hose from vacuum pump.

CAUTION: Plug hose and pump.

  1. Move vacuum pipe aside.

Models with air conditioning

Models with air conditioning – Move vacuum pipe aside.

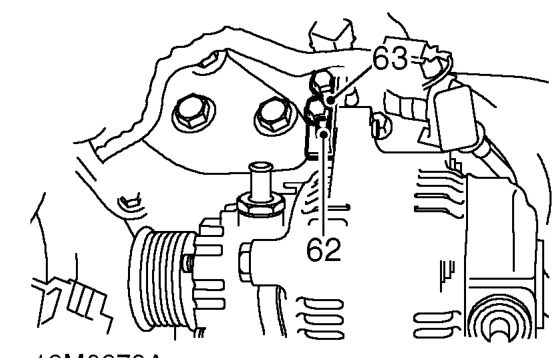

  1. Remove bolt securing alternator to top mounting bracket.
  2. Remove 2 bolts securing mounting bracket to coolant outlet elbow. Remove mounting bracket.

All models

All models – Remove 2 bolts securing mounting bracket to coolant outlet elbow. Remove mounting bracket.

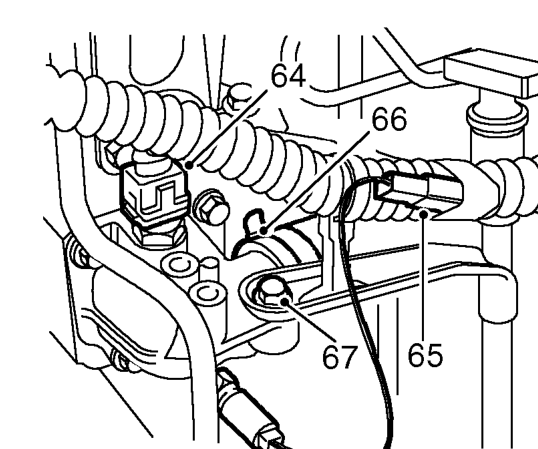

  1. Disconnect multiplug from ECT sensor.
  2. Disconnect engine coolant temperature gauge Lucar from harness.
  3. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  4. Remove bolt securing dipstick tube bracket to coolant outlet elbow.
