Engine - L SeriesModels with air conditioning · page 2 of 2
Diagram

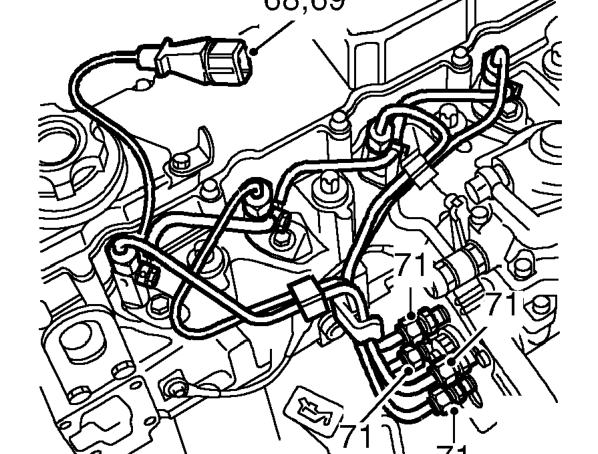

  1. Release injector needle lift sensor multiplug from injection pump bracket.
  2. Disconnect injector needle lift sensor multiplug from harness.
  3. Position absorbent cloth around fuel injector pipe unions to absorb any fuel spillage.
  4. Loosen unions securing pipes to FIP.

CAUTION: To prevent damage to fuel injection pipes or components, use 2 spanners when loosening unions.

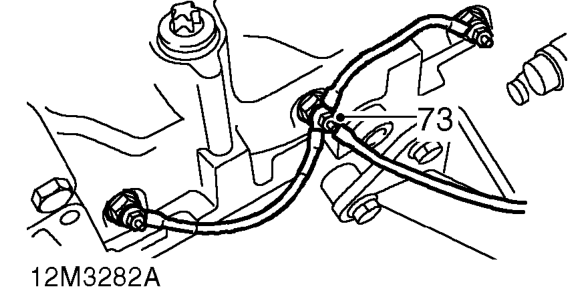

  1. Disconnect injector pipe unions from injectors and FIP, remove pipes as a set.

CAUTION: Plug the connections.

Disconnect injector pipe unions from injectors and FIP, remove pipes as a set.
  1. Remove nut and disconnect feed lead from glowplug No. 2.
Remove nut and disconnect feed lead from glowplug No. 2.

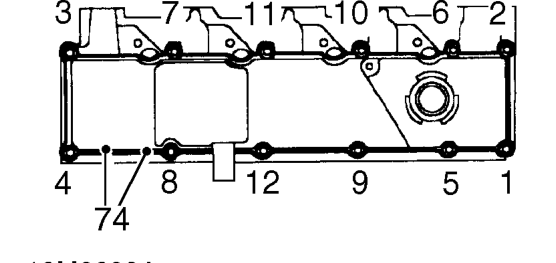

  1. Using sequence shown, remove 12 bolts securing camshaft cover.

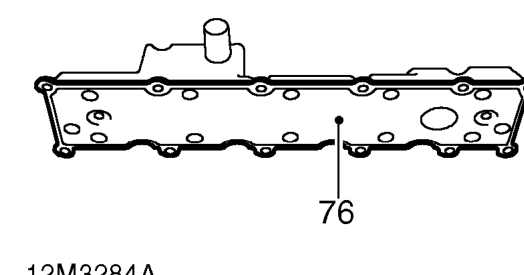

  2. Remove camshaft cover.
Remove camshaft cover.
  1. Release gasket from camshaft cover and discard.
Release gasket from camshaft cover and discard.

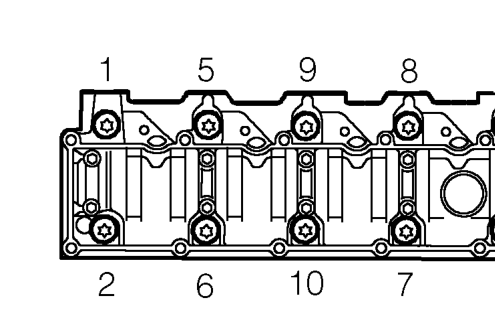

  1. Working in the sequence shown, progressively loosen and remove 10 cylinder head bolts.

NOTE: Store cylinder head bolts in their original positions for refitment. Do not remove washers from bolts.
