Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

Models with intercooler

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Models with intercooler
Engine - L SeriesModels with intercooler

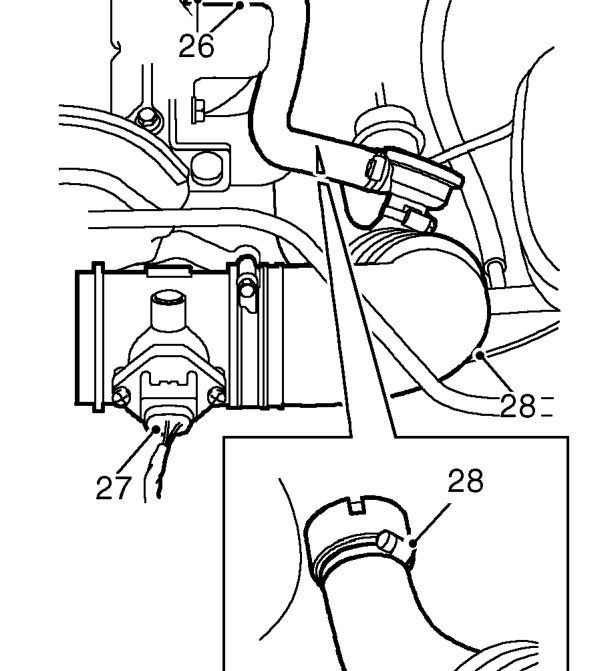

Diagram
  1. Loosen clip and disconnect breather hose from camshaft cover.
  2. Disconnect multiplug from mass air flow (MAF) sensor.
  3. Loosen clip and disconnect air intake pipe from turbocharger, remove air intake pipe assembly.

Models with intercooler

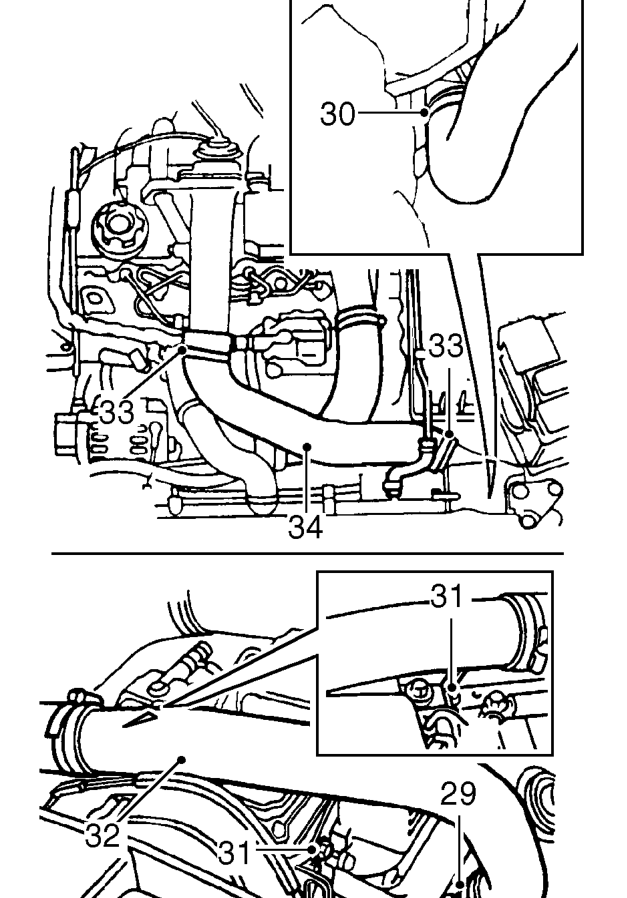

Models with intercooler – Loosen clip and disconnect air intake pipe from turbocharger, remove air intake pipe assem
  1. Loosen hose clip at turbocharger outlet.
  2. Loosen hose clip at intercooler inlet.
  3. Remove 2 bolts securing turbocharger outlet pipe to cylinder head and engine lifting eye bracket.
  4. Remove pipe and hose assembly.
  5. Loosen hose clips at intercooler outlet and plenum chamber.
  6. Remove intercooler outlet hose.
