Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

Camshaft cover gasket - models with intercooler

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Camshaft cover gasket - models with intercooler
Engine - L SeriesCamshaft cover gasket - models with intercooler · page 1 of 2

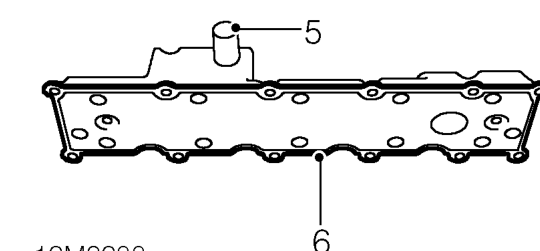

Diagram
  1. Remove camshaft cover.
  2. Release gasket from camshaft cover and discard.

Refit

  1. Clean camshaft cover and mating face on camshaft carrier. Ensure bolt holes in camshaft carrier are clean and dry.
  2. Fit new gasket to camshaft cover.

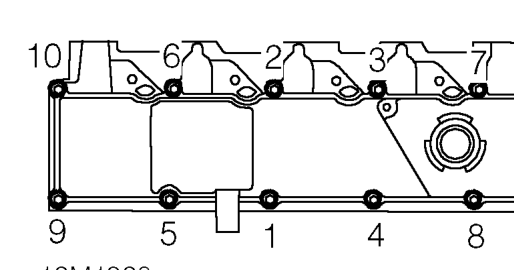

Fit new gasket to camshaft cover.
  1. Fit camshaft cover and using sequence shown, tighten bolts to 12 Nm.
  2. Align brake servo vacuum pipe bracket to camshaft cover and secure with bolt.
  3. Connect engine breather hose to camshaft cover and tighten clip.
  4. Fit engine acoustic cover. See BODY, Exterior fittings.

CAMSHAFT COVER GASKET - MODELS WITH INTERCOOLER

Service repair no - 12.29.40

Remove

  1. Remove engine acoustic cover. See BODY, Exterior fittings.

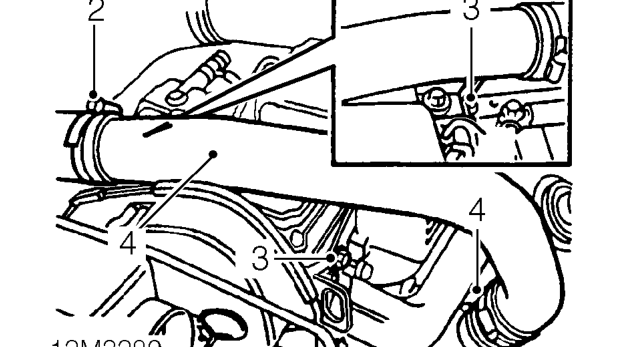

Camshaft cover gasket - models with intercooler – Remove engine acoustic cover. See BODY, Exterior fittings.
  1. Loosen clip and disconnect intercooler top hose from turbocharger pipe.
  2. Remove 2 bolts securing turbocharger pipe to cylinder head and engine lifting bracket.
  3. Loosen clip securing pipe to turbocharger and remove turbocharger pipe.
