Engine - L SeriesCamshaft cover gasket - models with intercooler · page 2 of 2

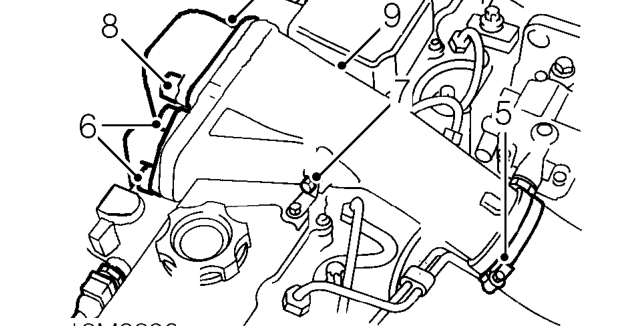

5. Loosen clip and disconnect intercooler bottom hose from plenum chamber.
6. Remove 2 bolts securing EGR recirculation pipe to plenum chamber.
7. Remove bolt securing plenum chamber to camshaft cover.
8. Remove 2 bolts securing plenum chamber to inlet manifold.
9. Remove plenum chamber and discard gasket.

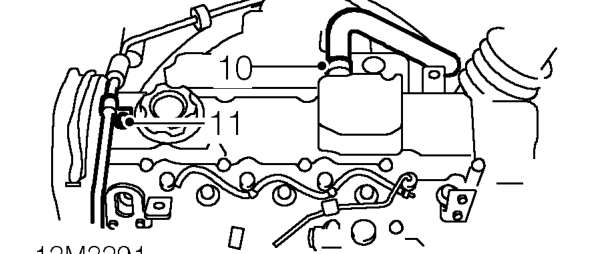

10. Loosen clip and disconnect engine breather hose from camshaft cover.
11. Remove bolt securing brake servo vacuum pipe to camshaft cover.

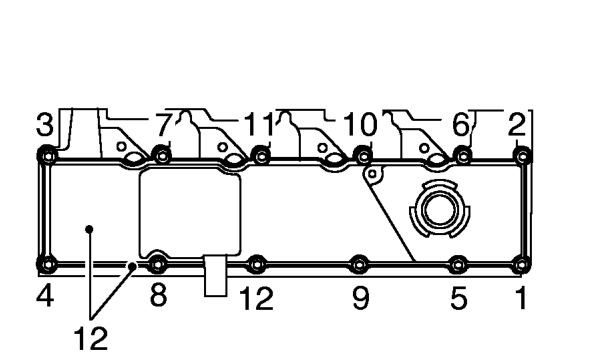

12. Using sequence shown, remove 12 bolts securing camshaft cover.
13. Remove camshaft cover.

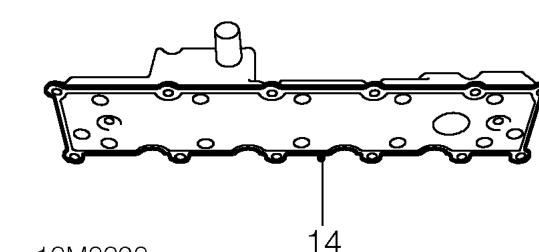

14. Release gasket from camshaft cover and discard.
