Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

All Models

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › All Models
Engine - L SeriesAll Models · page 1 of 5
Diagram

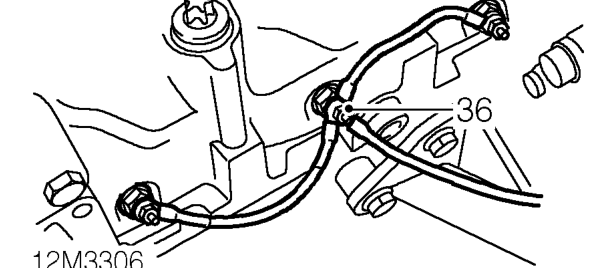

  1. Remove nut and disconnect glow plug feed lead from No.2 glowplug.

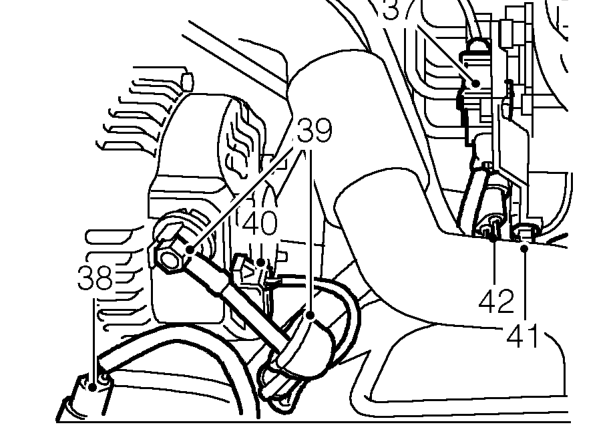

Remove nut and disconnect glow plug feed lead from No.2 glowplug.
  1. Release injector lift sensor multiplug from FIP bracket and disconnect multiplug from harness.
  2. Disconnect cooling fan multiplug.
  3. Remove cover from alternator terminal, remove nut and disconnect lead.
  4. Disconnect multiplug from alternator.
  5. Release clip securing harness to FIP bracket.
  6. Disconnect multiplug(s) from FIP.

All Models

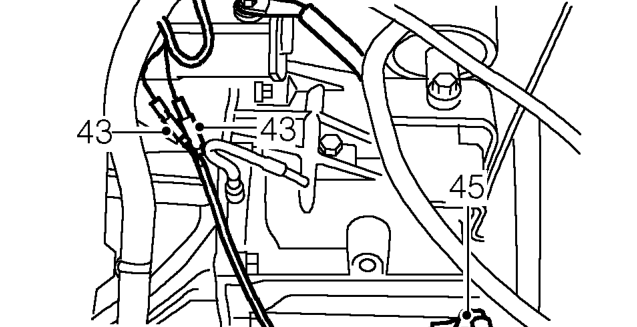

All models – Disconnect multiplug(s) from FIP.
  1. Disconnect reverse lamp switch leads.
  2. Disconnect lucar from starter solenoid.
  3. Remove bolt securing earth leads to gearbox.

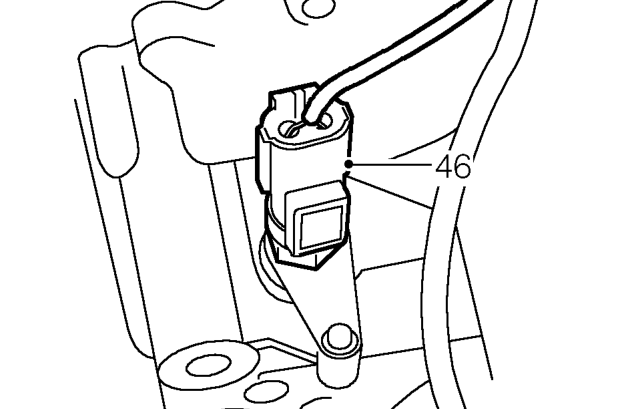

All models – Remove bolt securing earth leads to gearbox.
  1. Disconnect multiplug from vehicle speed sensor.
