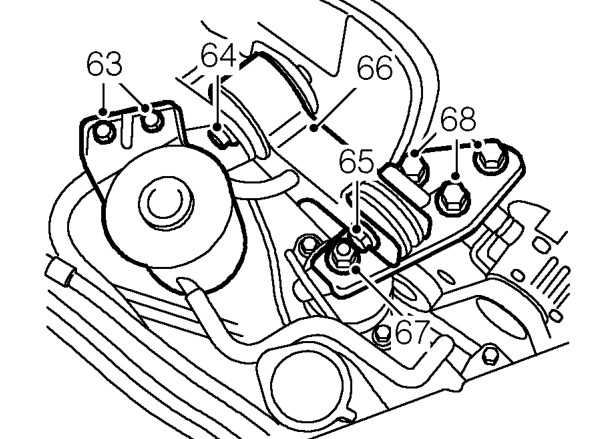

63. Remove 2 bolts securing PAS fluid reservoir to body and position aside.
64. Remove through bolt securing tie bar to body.
65. Remove through bolt securing tie bar to engine mounting.
66. Remove tie bar.
67. Remove nut securing bracket to RH engine mounting.
68. Remove 3 bolts securing mounting bracket to engine and remove bracket.
69. Collect special washer.

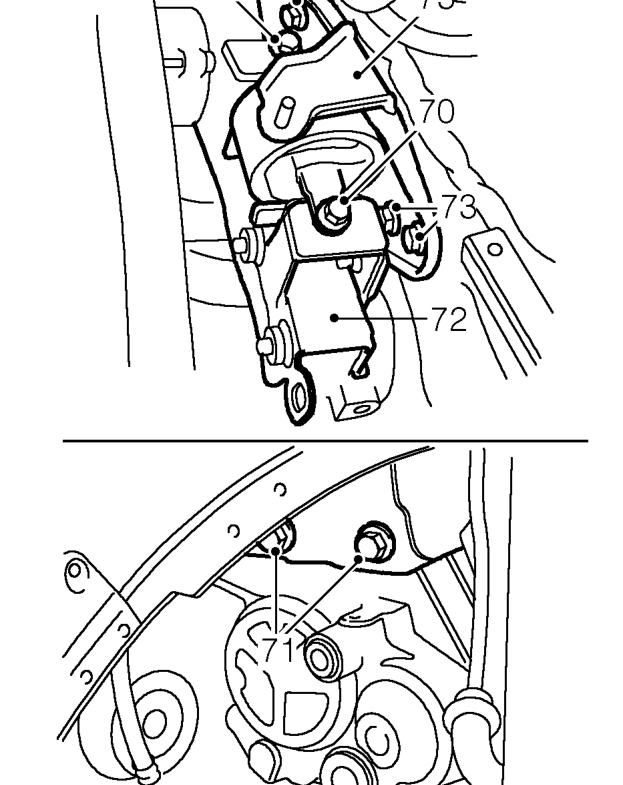

70. Remove 2 bolts securing LH engine mounting to bracket on gearbox.
71. Lower engine and gearbox assembly for access and remove 2 bolts securing mounting bracket to gearbox.
72. Remove bracket from gearbox.
73. Remove 4 bolts securing LH engine mounting to body and remove mounting.
74. Using adjustable lifting bracket tool 18G 1598, tilt engine with the gearbox as low as possible.
75. Using assistance, raise engine and manoeuvre from vehicle.
76. Move engine and gearbox away from vehicle and lower. Disconnect hoist from adjustable lifting bracket.
