Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

All Models (page 3 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - L SeriesAll Models · page 3 of 5
Diagram

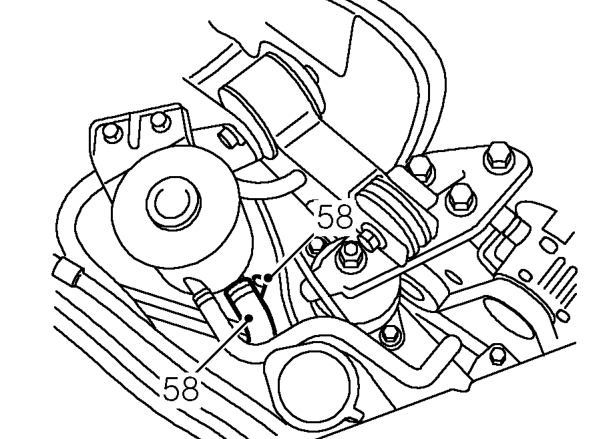

  1. Release clip and disconnect outlet hose from PAS reservoir.
Release clip and disconnect outlet hose from PAS reservoir.

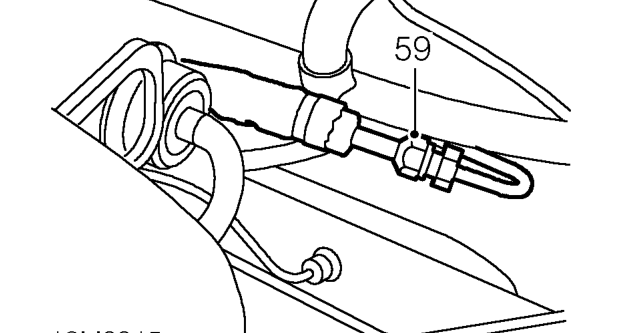

  1. Disconnect PAS high pressure union at bulk head.

CAUTION: Plug the connections.

Disconnect PAS high pressure union at bulk head.

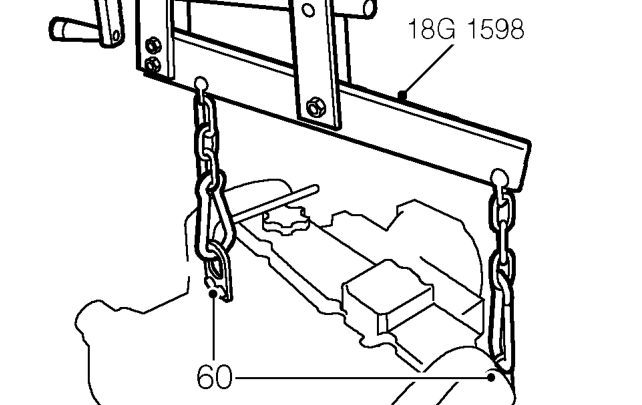

  1. Connect adjustable lifting bracket tool 18G 1598 to engine lifting brackets.
  2. Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine

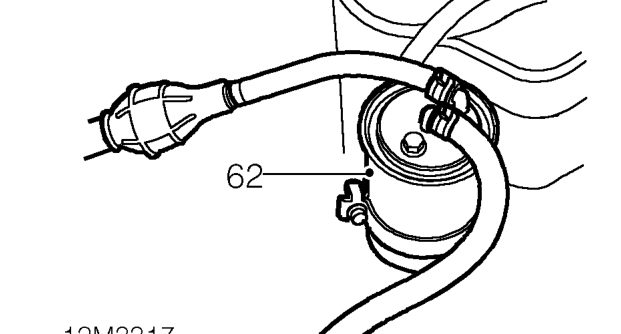

  1. Release fuel filter from bracket and move aside.
