Front pipe - ’t’ series

FRONT PIPE - ’T’ SERIES

Service repair no - 30.10.09

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

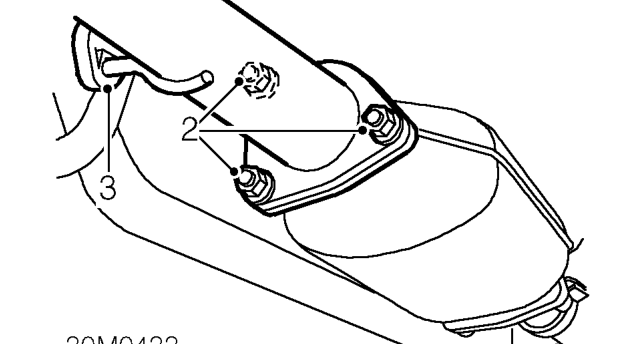

2. Remove 3 flange nuts securing front pipe to catalyst.
3. Release mounting rubber from pipe bracket.

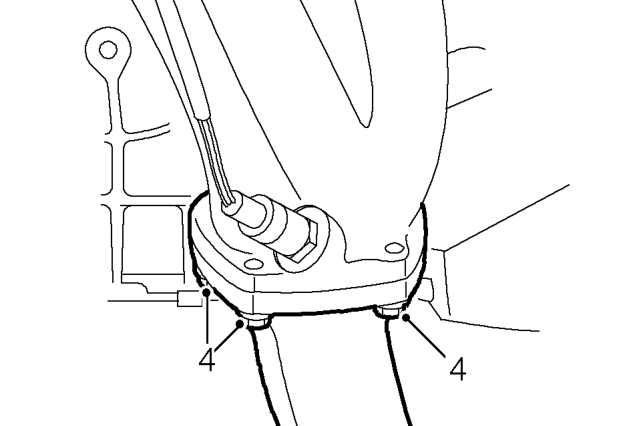

4. Remove 4 flange nuts securing front pipe to manifold.
5. Release front pipe from manifold and remove from catalyst.
6. Remove flange gaskets.

Refit

1. Clean pipe flanges.
2. Fit NEW gasket to catalyst flange.
3. Fit front pipe to catalyst, fit nuts but DO NOT tighten.
4. Fit NEW gasket to manifold flange.
5. Position front pipe to manifold, fit nuts and tighten to 45 Nm.
6. Tighten front pipe to catalyst nuts to 22 Nm.
7. Connect rubber mounting to pipe bracket.
8. Remove stand(s) and lower vehicle.
