Manifold & exhaust systemsIntermediate pipe - ’d’ series · page 1 of 2

Refit

  1. Clean mating faces of intermediate pipe, catalytic converter and tail pipe.
  2. Fit new gaskets to tail pipe flange end of intermediate pipe and catalytic converter flange.
  3. Fit intermediate pipe to tail pipe, align and connect to catalytic converter flange. Fit nuts and tighten to 34 Nm.
  4. Connect mounting rubbers.
  5. Lower vehicle.

INTERMEDIATE PIPE - ’D’ SERIES

Service repair no - 30.10.11

Remove

  1. Raise vehicle on 4 post ramp.

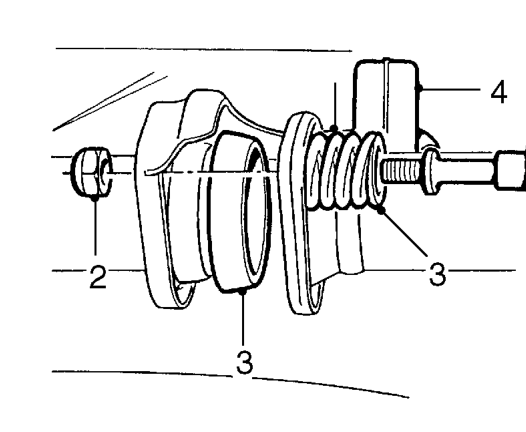

Intermediate pipe - ’d’ series – Raise vehicle on 4 post ramp.
  1. Remove 2 nuts securing tail pipe to intermediate pipe. Discard nuts
  2. Collect 2 clamp springs and remove gasket.
  3. Release rubber mounting from intermediate pipe.

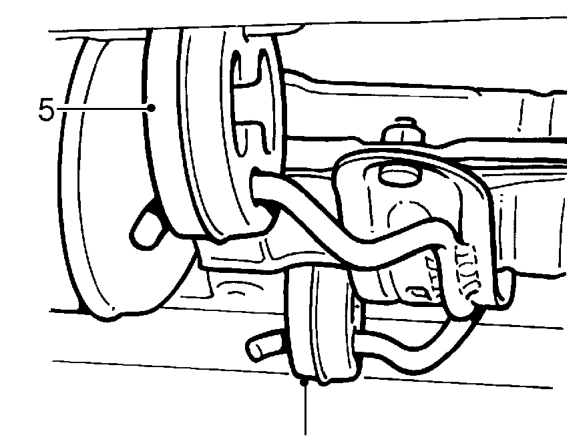

Intermediate pipe - ’d’ series – Release rubber mounting from intermediate pipe.
  1. Release 2 rubber mountings from intermediate pipe.
