INTERMEDIATE PIPE - ’K’ SERIES

Service repair no - 30.10.11

Remove

  1. Raise vehicle on 4 post ramp.
Intermediate pipe - ’k’ series – Raise vehicle on 4 post ramp.

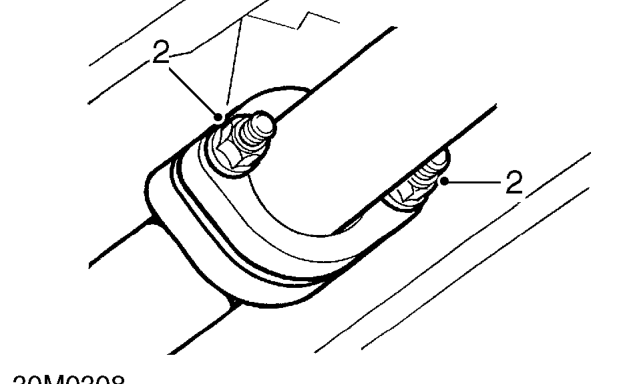

  1. Remove 2 nuts securing tail pipe to intermediate pipe.
Intermediate pipe - ’k’ series – Remove 2 nuts securing tail pipe to intermediate pipe.

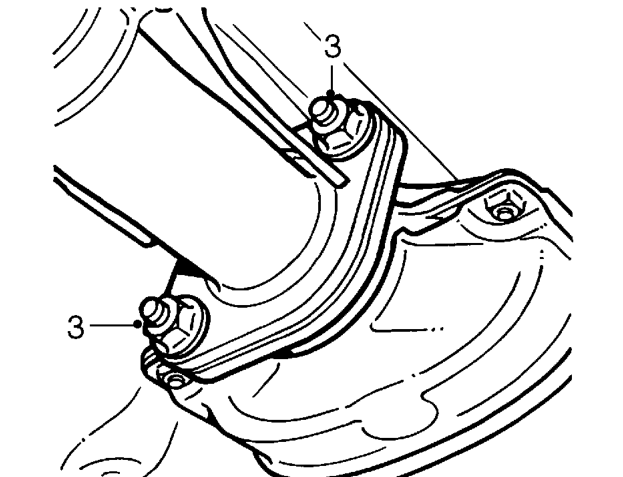

  1. Remove 2 nuts securing intermediate pipe to catalytic converter.
  2. Release intermediate pipe from catalytic converter. Remove and discard gasket.
Intermediate pipe - ’k’ series – Release intermediate pipe from catalytic converter. Remove and discard gasket.

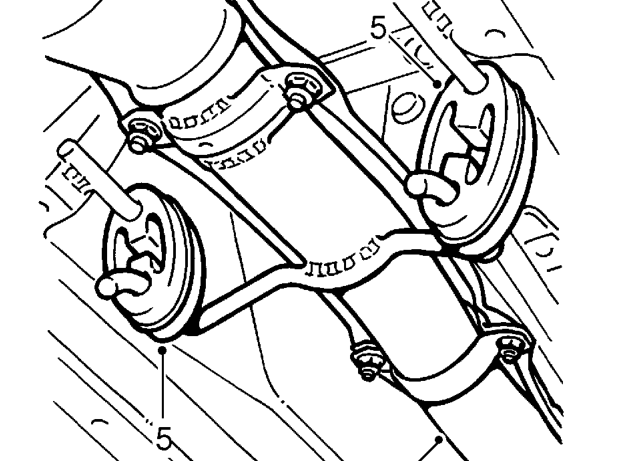

  1. Release 2 rubber mountings from intermediate pipe.
  2. Release and remove intermediate pipe. remove and discard gasket from tail pipe flange end of intermediate pipe. Do not carry out further dismantling if component is removed for access only.
Intermediate pipe - ’k’ series – Release and remove intermediate pipe. remove and discard gasket from tail pipe flange end

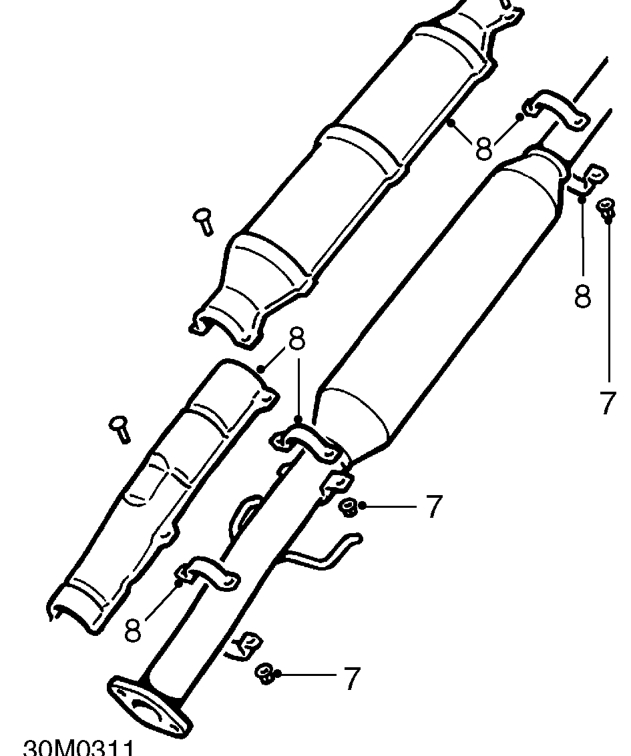

  1. Remove 6 nuts securing heatshield brackets.
  2. Remove heatshields and brackets.
  3. Fit heatshields and brackets to new intermediate pipe and tighten nuts.
