Tail pipe - ’l’ series

Refit

1. Clean mating faces of intermediate pipe, catalytic converter and tail pipe.
2. Fit new gaskets to tail pipe flange end of intermediate pipe and catalytic converter flange.
3. Fit intermediate pipe to tail pipe, align and connect to catalytic converter flange. Fit nuts and tighten intermediate pipe flange nuts to 34 Nm and tail pipe flange nuts to 45 Nm.
4. Connect mounting rubbers.
5. Lower vehicle.

TAIL PIPE - ’L’ SERIES

Service repair no - 30.10.22

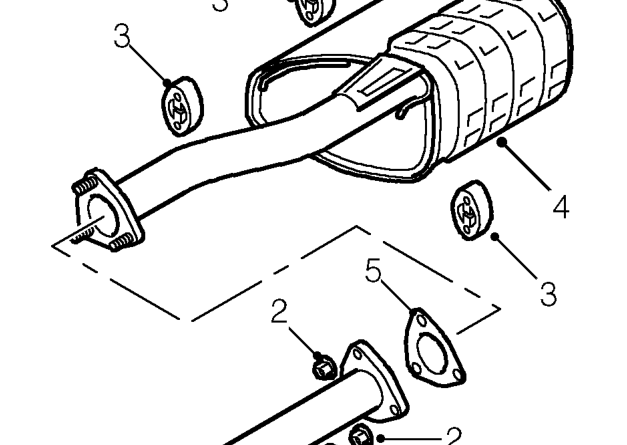

Remove

1. Raise vehicle on 4 post ramp.

2. Remove 3 nuts securing intermediate pipe to tail pipe.
3. Release 3 rubber mountings from tail pipe.
4. Remove tail pipe.
5. Remove and discard gasket.

Refit

1. Clean intermediate pipe and tail pipe mating faces.
2. Fit new gasket to intermediate pipe flange studs.
3. Fit tail pipe and connect rubber mountings.
4. Fit nuts to flange and tighten to 45 Nm.
5. Lower vehicle.
