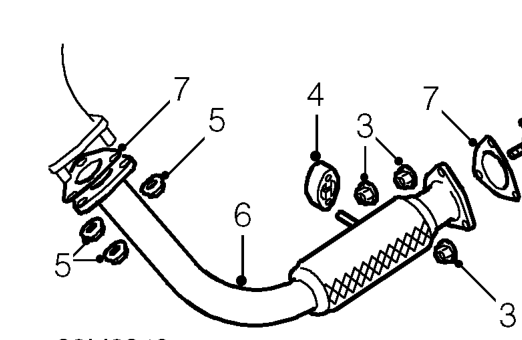

Front pipe - ’l’ series

FRONT PIPE - ’L’ SERIES

Service repair no - 30.10.09

Remove

1. Raise vehicle on 4 post ramp.
2. Remove underbelly panel. See BODY, Exterior fittings.

3. Remove 3 flange nuts securing front pipe to catalytic converter.
4. Release mounting rubber from pipe bracket.
5. Remove 3 flange nuts securing front pipe to manifold.
6. Release front pipe from manifold and remove from catalytic converter.
7. Remove flange gaskets.

Refit

1. Clean pipe flanges.
2. Fit new gasket to catalytic converter flange.
3. Fit front pipe to catalytic converter, fit nuts but DO NOT tighten.
4. Fit new gasket to manifold flange.
5. Raise front pipe and engage flange.
6. Fit manifold to front pipe flange nuts and tighten to 45 Nm.
7. Tighten flange nuts securing front pipe to catalytic converter to 22 Nm.
8. Connect rubber mounting to front pipe bracket.
9. Fit underbelly panel. See BODY, Exterior fittings.
10. Lower vehicle.

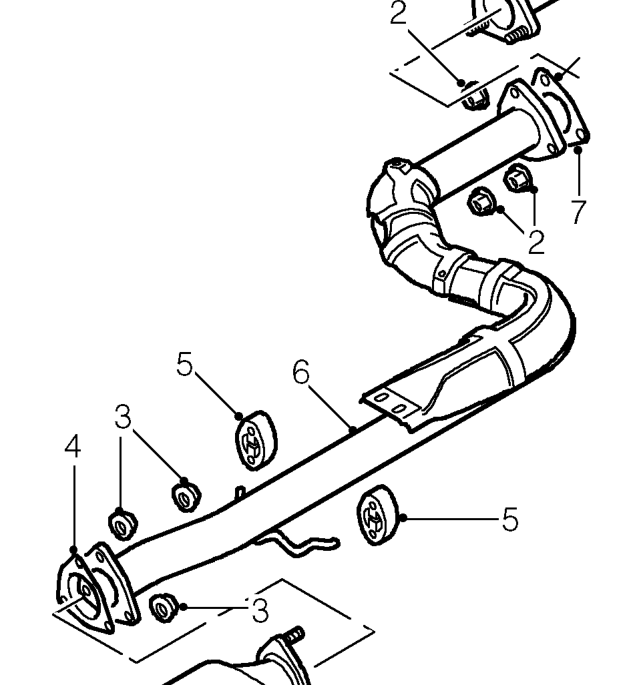

INTERMEDIATE PIPE - ’L’ SERIES

Service repair no - 30.10.11

Remove

1. Raise vehicle on 4 post ramp.

2. Remove 3 nuts securing tail pipe to intermediate pipe.
3. Remove 3 nuts securing intermediate pipe to catalytic converter.
4. Release intermediate pipe from catalytic converter. Remove and discard gasket
5. Release 2 rubber mountings from intermediate pipe.
6. Release and remove intermediate pipe.
7. Remove and discard gasket from tail pipe flange end of intermediate pipe.
