TAIL PIPE - ’T’ SERIES

Service repair no - 30.10.22

Remove

  1. Raise vehicle on 4 post ramp.
Tail pipe - ’t’ series – Raise vehicle on 4 post ramp.

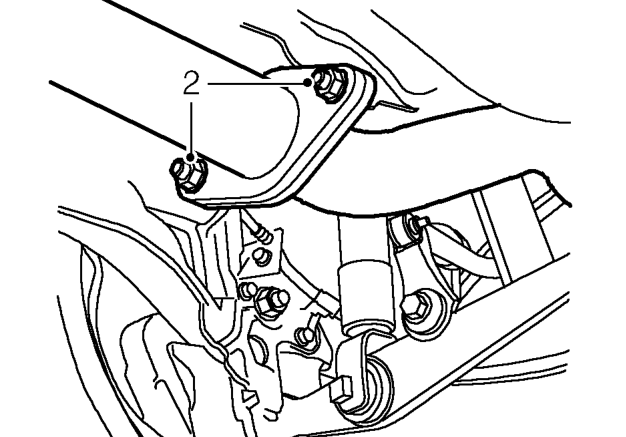

  1. Remove 2 nuts securing intermediate pipe to tail pipe.
Tail pipe - ’t’ series – Remove 2 nuts securing intermediate pipe to tail pipe.

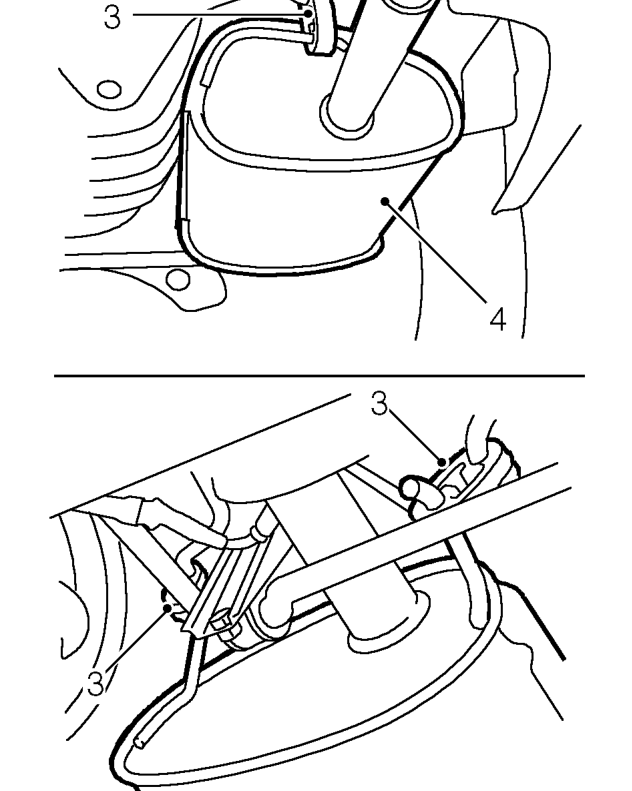

  1. Release 3 rubber mountings from tail pipe.
  2. Remove tail pipe.
  3. Remove and discard gasket.

Refit

  1. Clean intermediate pipe and tail pipe mating faces.
  2. Fit NEW gasket to intermediate pipe flange studs.
  3. Fit tail pipe and connect rubber mountings.
  4. Fit nuts to flange and tighten to 45 Nm.
  5. Lower vehicle.
