EXHAUST MANIFOLD GASKET - ’T’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 30.15.12

Remove

  1. Disconnect battery earth lead.
Exhaust manifold gasket - ’t’ series without air conditioning – Disconnect battery earth lead.

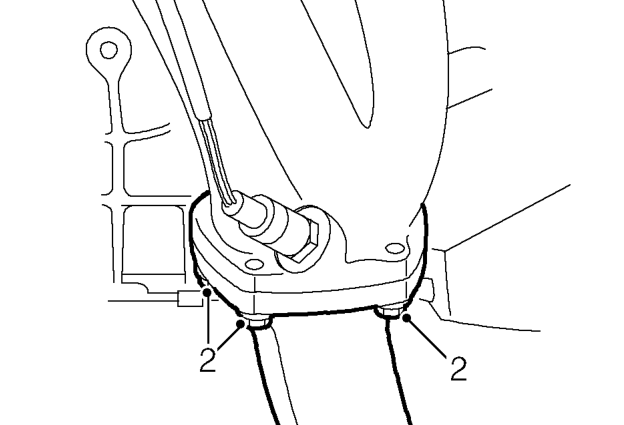

  1. Remove 4 flange nuts securing exhaust front pipe to manifold, release pipe and discard gasket.
Exhaust manifold gasket - ’t’ series without air conditioning – Remove 4 flange nuts securing exhaust front pipe to manifold, release pipe and discard gas

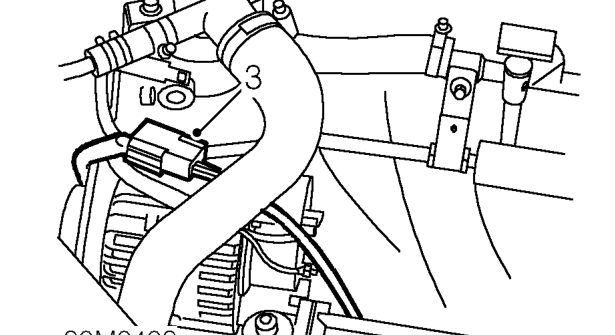

  1. Release heated oxygen sensor multiplug from clip and disconnect multiplug.
Exhaust manifold gasket - ’t’ series without air conditioning – Release heated oxygen sensor multiplug from clip and disconnect multiplug.

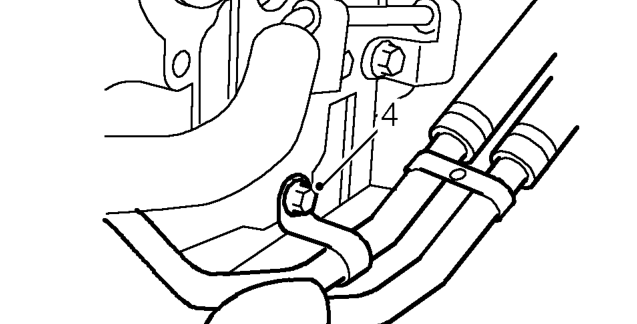

  1. Remove bolt securing coolant rail to cylinder head.
Exhaust manifold gasket - ’t’ series without air conditioning – Remove bolt securing coolant rail to cylinder head.

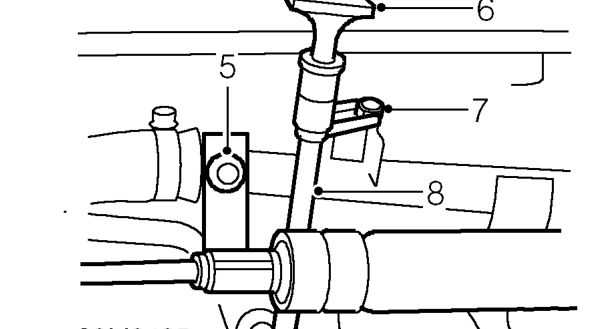

  1. Remove bolt securing PAS pipe to coolant rail.
  2. Remove dipstick.
  3. Remove bolt securing dipstick tube to coolant rail.
  4. Remove dipstick tube from engine.
Exhaust manifold gasket - ’t’ series without air conditioning – Remove dipstick tube from engine.

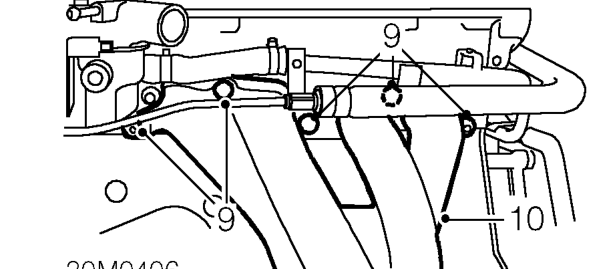

  1. Remove 3 bolts and 2 nuts securing exhaust manifold to cylinder head.
  2. Release manifold from cylinder head studs and remove manifold.
  3. Remove and discard manifold gasket.
