Rover 400 Workshop Manual (1995-2000)16 · Manifold & exhaust systems
16 · Engine

Front pipe to manifold gasket - ’d’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Front pipe to manifold gasket - ’d’ series
Manifold & exhaust systemsFront pipe to manifold gasket - ’d’ series
  1. Release front pipe from manifold.

CAUTION: Support front pipe with flange above underbelly panel.

  1. Remove gasket from manifold flange.

Refit

  1. Clean manifold and front pipe flanges.
  2. Fit new gasket to manifold flange.
  3. Raise front pipe and engage flange and support bracket studs.
  4. Fit and tighten manifold nuts to 45 Nm.
  5. Fit and tighten support bracket nuts to 25 Nm.
  6. Remove stand(s) and lower vehicle.

FRONT PIPE TO MANIFOLD GASKET - ’D’ SERIES

Service repair no - 30.10.26

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

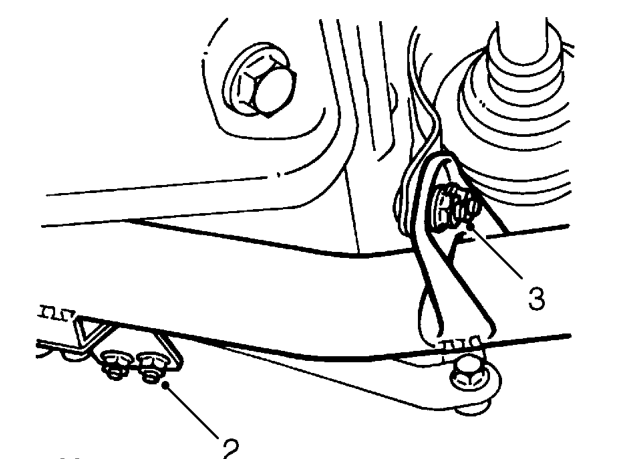

Front pipe to manifold gasket - ’d’ series – Raise front of vehicle.
  1. Remove 2 flange nuts securing front pipe to gearbox bracket.
  2. Remove 2 flange nuts securing front pipe to engine bracket.

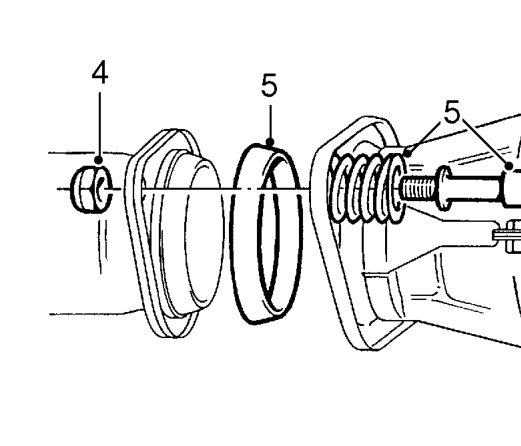

Front pipe to manifold gasket - ’d’ series – Remove 2 flange nuts securing front pipe to engine bracket.
  1. Remove 2 nuts securing front pipe clamp to catalytic converter.
  2. Remove 2 bolts and 2 springs.
