Rover 400 Workshop Manual (1995-2000)23 · Suspension
23 · Steering & suspension

Rear trailing arm and stub axle - disc brake (page 2 of 3)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionRear trailing arm and stub axle - disc brake · page 2 of 3
Diagram
  1. Remove bolt securing handbrake cable clip to trailing arm.
  2. Release cable from trailing arm.
Release cable from trailing arm.

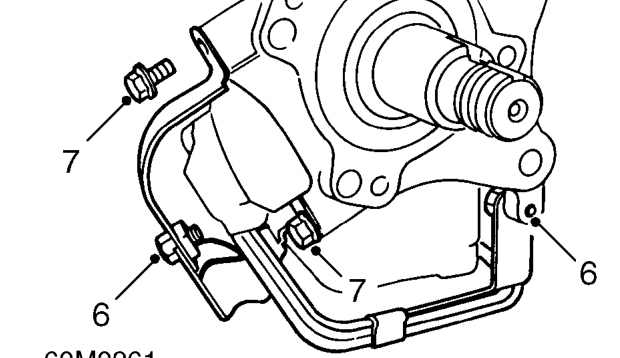

  1. Remove 2 bolts and disconnect ABS harness bracket from trailing arm.
  2. Remove 2 bolts securing ABS sensor shield and remove shield.
Remove 2 bolts securing ABS sensor shield and remove shield.

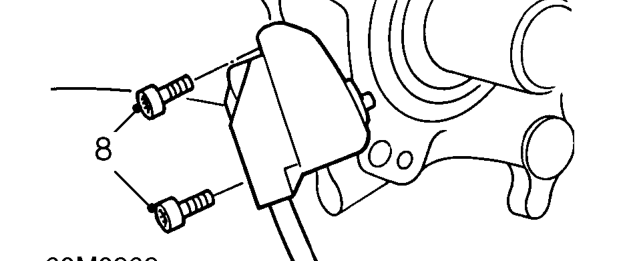

  1. Remove 2 TX30 Torx screws securing ABS sensor adaptor plate. Release and position plate aside.
  2. Support lower arm on jack against spring tension.
Support lower arm on jack against spring tension.

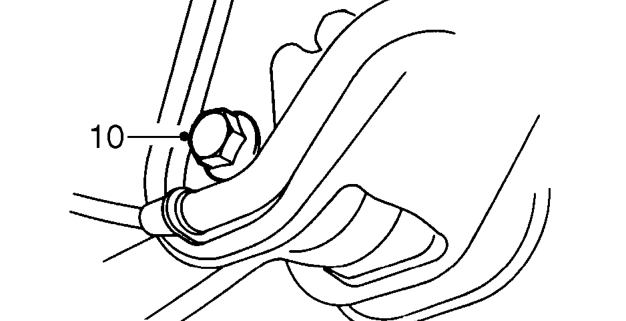

  1. Loosen bolt securing lower arm to body.
