SuspensionRear trailing arm and stub axle - disc brake · page 3 of 3
Diagram

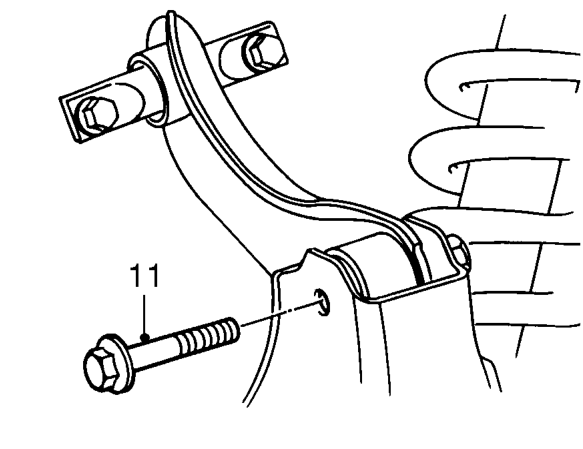

  1. Remove bolt securing trailing arm to upper arm.
Remove bolt securing trailing arm to upper arm.

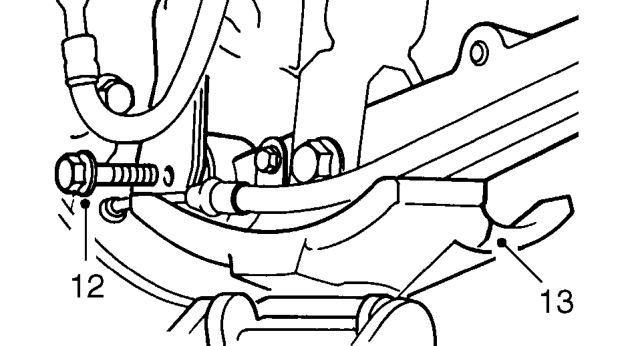

  1. Remove bolt securing lower arm to trailing arm.
  2. Lower jack and release lower arm from trailing arm.
Lower jack and release lower arm from trailing arm.

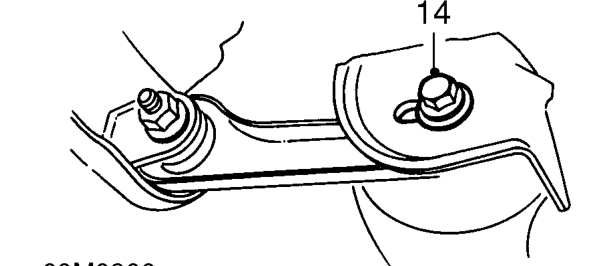

  1. Remove bolt securing compensator arm to body.
Remove bolt securing compensator arm to body.

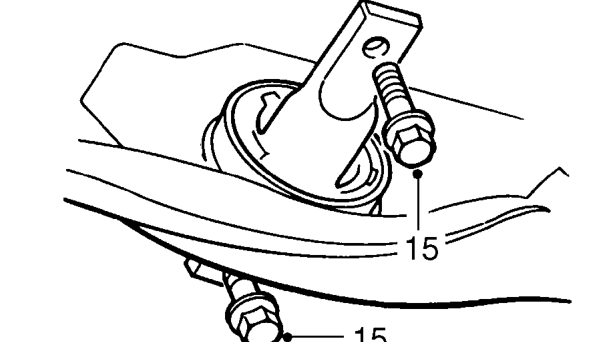

  1. Remove 2 bolts securing trailing arm bush to body.
  2. Remove trailing arm assembly. Do not carry out further dismantling if component is removed for access only.
Remove trailing arm assembly. Do not carry out further dismantling if component is removed

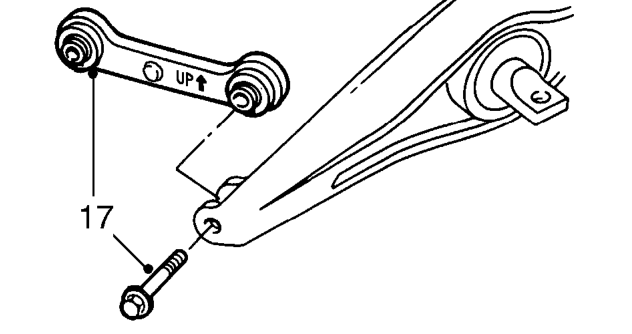

  1. Remove bolt securing compensator arm to trailing arm and remove arm.
