Manual gearboxReverse light switch · page 2 of 10

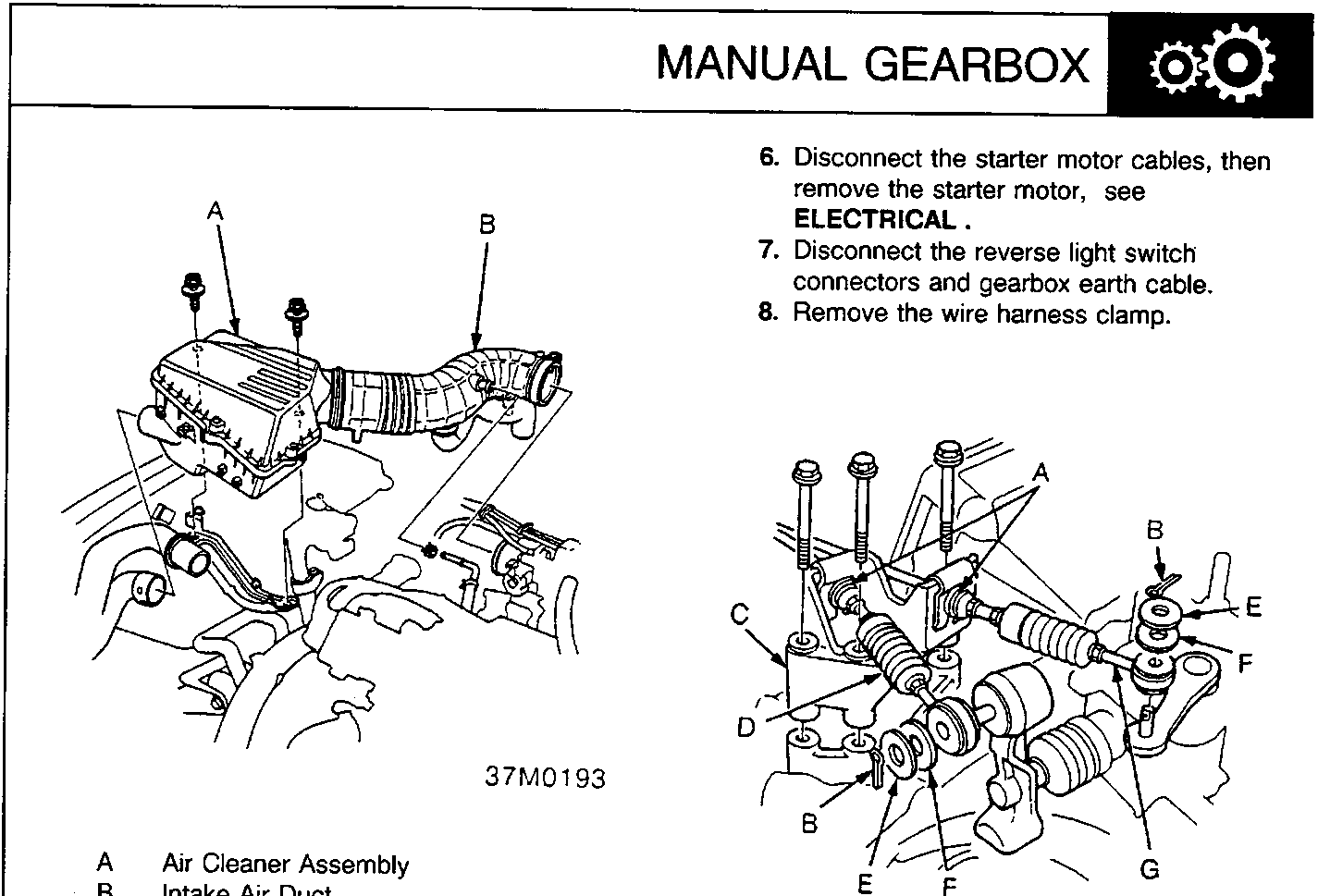

Diagram showing the air cleaner assembly and intake air duct on the engine
A Air Cleaner Assembly B Intake Air Duct 6. Disconnect the starter motor cables, then remove the starter motor, see ELECTRICAL. 7. Disconnect the reverse light switch connectors and gearbox earth cable. 8. Remove the wire harness clamp.
Diagram showing the shift cable, select cable, and cable bracket on the gearbox top housing
5. Remove the intake air duct and air cleaner assembly, see ENGINE MANAGEMENT SYSTEM – PGM-FI. A Do not remove B Cotter pin C Cable bracket D Shift cable E Steel washer F Plastic washer G Select cable 9. Shift the gear lever into reverse. 10. First remove the cable bracket, then disconnect the cables from the top housing of the gearbox. Replace the cotter pin.

Note: Remove both cables and the bracket together.

CAUTION: Take care not to bend cables.

Diagram showing the wire harness clamp, reverse light switch connectors, starter motor cables, starter motor, and earth cable

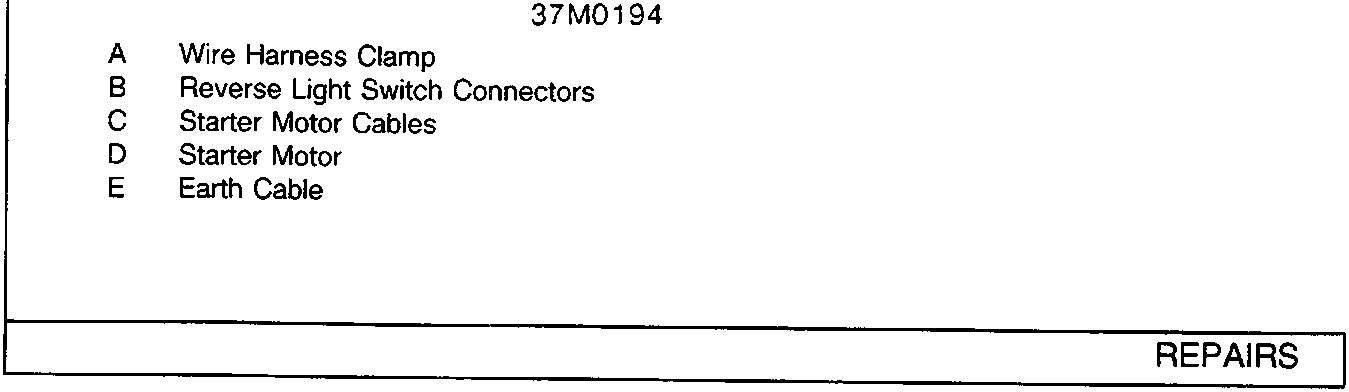

A Wire Harness Clamp B Reverse Light Switch Connectors C Starter Motor Cables D Starter Motor E Earth Cable
