• Clean all parts thoroughly in solvent and dry with compressed air.
• This gearbox uses no gaskets between the major housings; use liquid gasket.
• Always clean the magnet whenever the gearbox housing is disassembled.
• Inspect the ball bearings for wear and operation.

Note: Lubricate all parts with oil before reassembly.

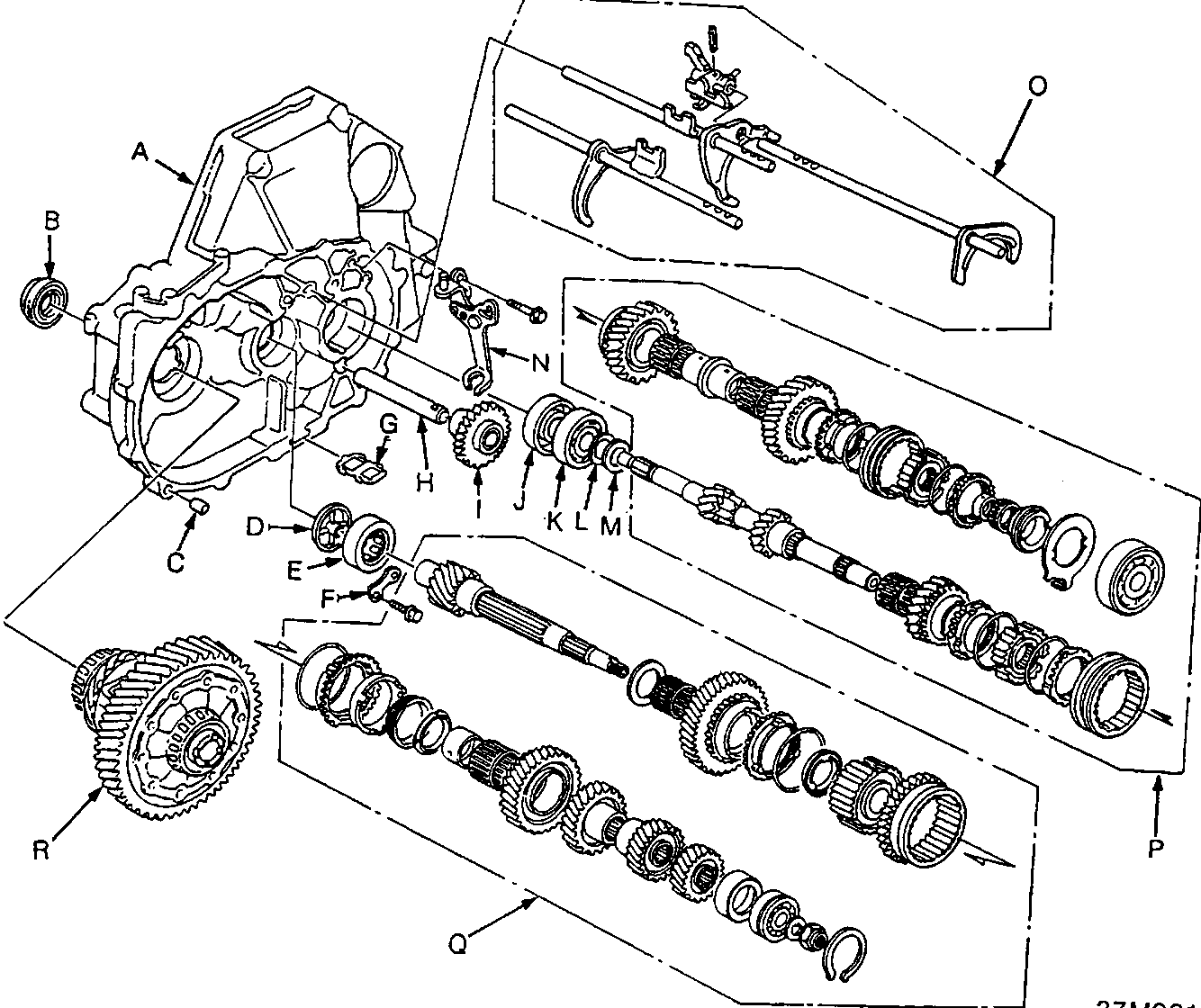

A	Clutch housing
B	Oil seal
C	14 x 20 mm, dowel pin
D	Oil guide plate
E	Needle bearing
F	Retaining plate
G	Magnet
H	Reverse idler gear shaft
I	Reverse idler gear
J	Oil seal
K	Ball bearing
L	Spring washer
M	Washer
N	Reverse shift fork
O	Shift fork assembly
P	Mainshaft assembly
Q	Countershaft assembly
R	Differential assembly
