Manual gearboxReverse light switch · page 6 of 10

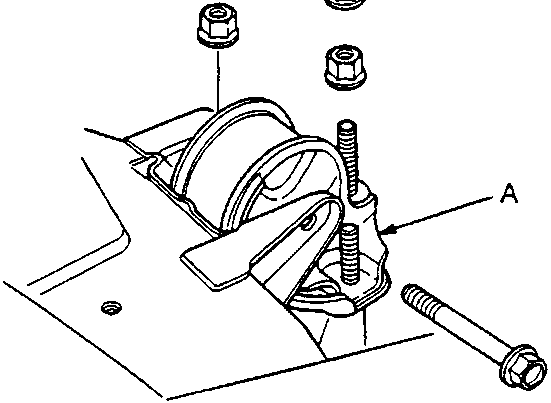

Diagram showing the gearbox mount with callout A

37M0208

A Gearbox mount

  1. Remove the gearbox mount.

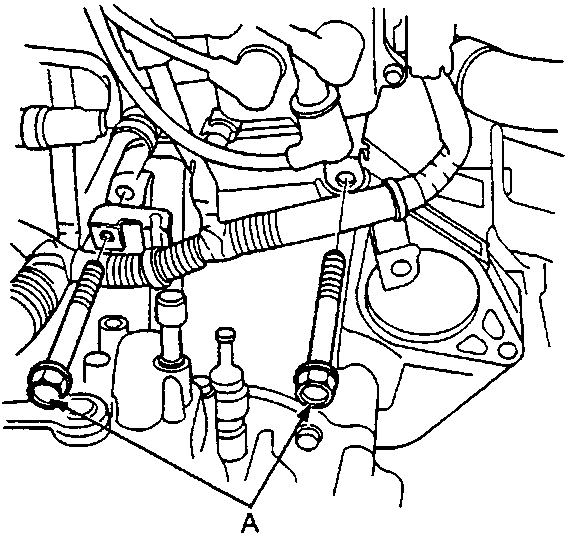

Diagram showing the upper gearbox housing mounting bolts with callout A

37M0209

A Gearbox housing mounting bolts.

  1. Remove the two upper gearbox housing mounting bolts.

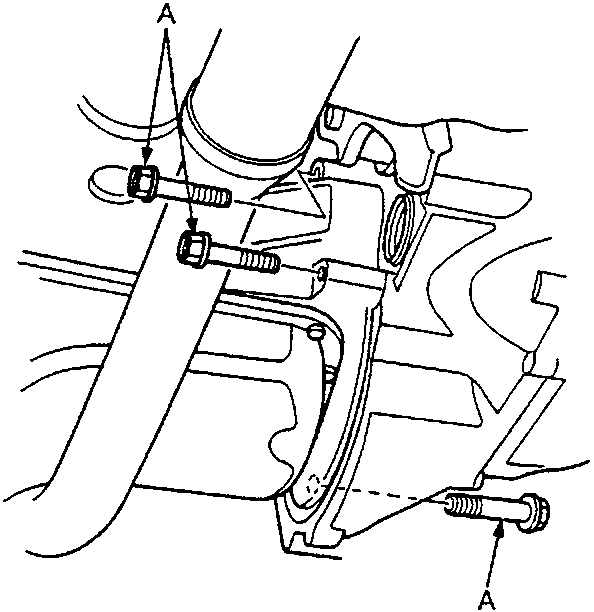

Diagram showing the lower gearbox housing mounting bolts with callout A

37M0210

A Gearbox housing mounting bolts.

  1. Remove the three lower gearbox housing mounting bolts.
  2. Pull the gearbox away from the engine until it clears the mainshaft, then lower it on the jack.
