Manual gearboxReverse light switch · page 4 of 10

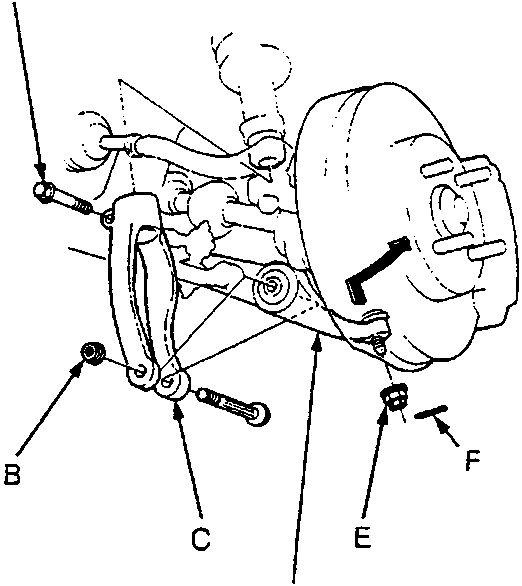

Diagram showing suspension components including self-locking bolt, damper fork, lower arm, castle nut, and cotter pin

37M0200

  • A Self - locking bolt
  • B Self - locking nut
  • C Damper fork
  • D Lower arm
  • E Castle nut
  • F Cotter pin
  1. Remove the cotter pins and ball joint nuts, then separate the ball joints and lower arms on both sides. Replace the cotter pins and self locking nuts and bolts, see SUSPENSION.
  2. Remove the damper fork.

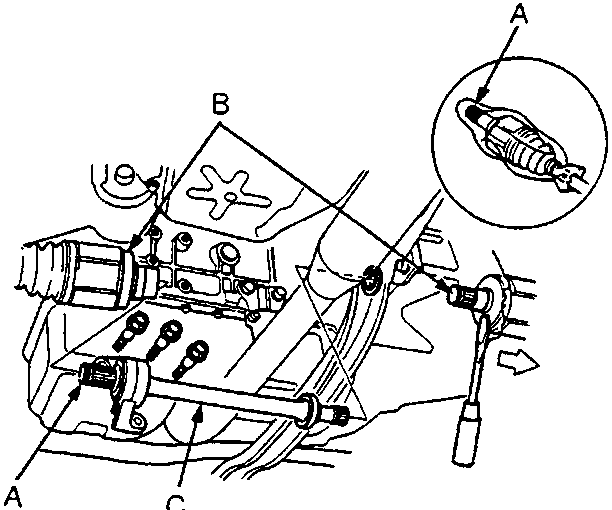

Diagram showing set ring, driveshafts, and intermediate shaft removal from gearbox

37M0201

  • A Set ring
  • B Driveshafts
  • C Intermediate shaft
  1. Remove the driveshafts and intermediate shaft, see DRIVE SHAFTS.

Note: Coat all precision finished surfaces with clean engine oil or grease. Tie plastic bags over the driveshaft ends. Replace the set ring.

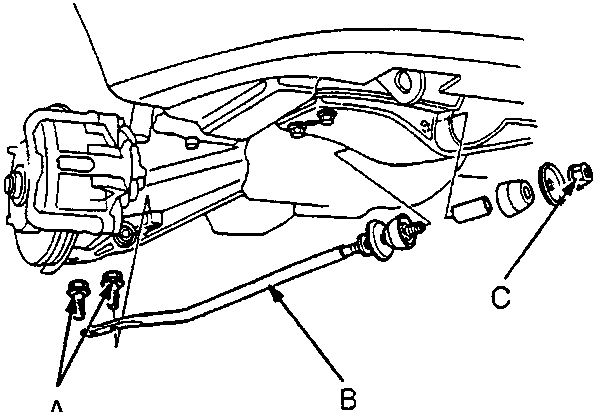

Diagram showing self-locking bolts, right-hand radius rod, and self-locking nut on vehicle chassis

37M0202

  • A Self - locking bolts
  • B Right - hand radius rod.
  • C Self - locking nut
  1. Remove the right - hand radius rod. Replace the self locking nuts and bolts, see SUSPENSION.

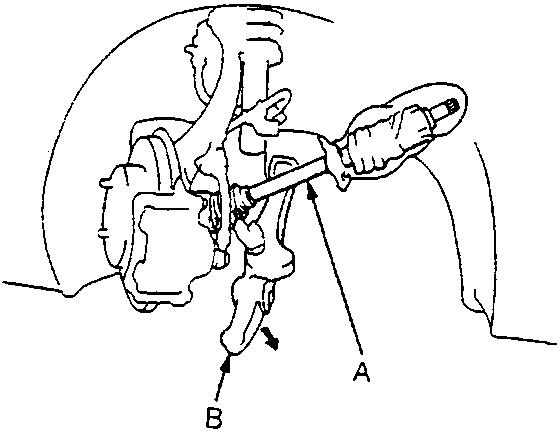

Diagram showing driveshaft and lower arm being separated from gearbox area

37M0203

  • A Driveshaft
  • B Lower arm
  1. Swing the driveshaft to the inner wing.
