Gear housing side (page 2 of 4)

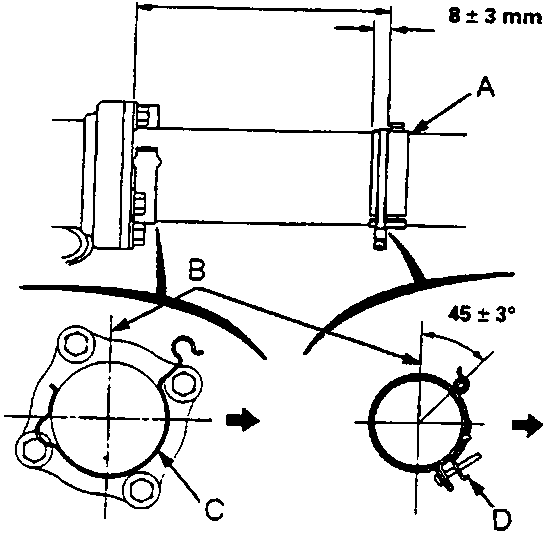

A Band Rubber

B Offset Shaft Centre Line

C Transfer Hose Clip
View from right side (cylinder side).

D Transfer Hose Band
View from right side (cylinder side).

48. Slide the rack right and left to be certain that the boots are not deformed or twisted.
49. Install the right and left tie-rod ends on the rack ends.
50. Install the transfer hose clip as shown.
51. Install the band rubber and transfer hose band; position the band as shown and tighten it.
52. Install the air transfer hose.

CAUTION: Be careful not to bend or damage the four power steering lines when installing the gearbox assembly.

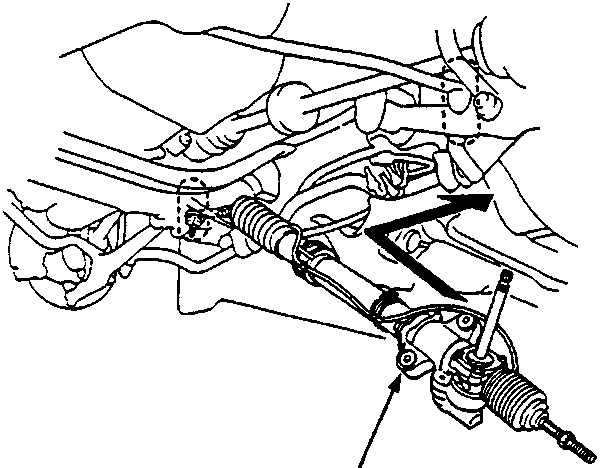

A Steering Gearbox Assembly

53. Slide the rack all the way to the right.
54. Pass the right side of the steering gearbox assembly above and through the right side of the rear beam.
55. Raise the left side of the steering gearbox assembly above and through the left side of the rear beam.
56. Insert the pinion shaft up through the bulkhead.

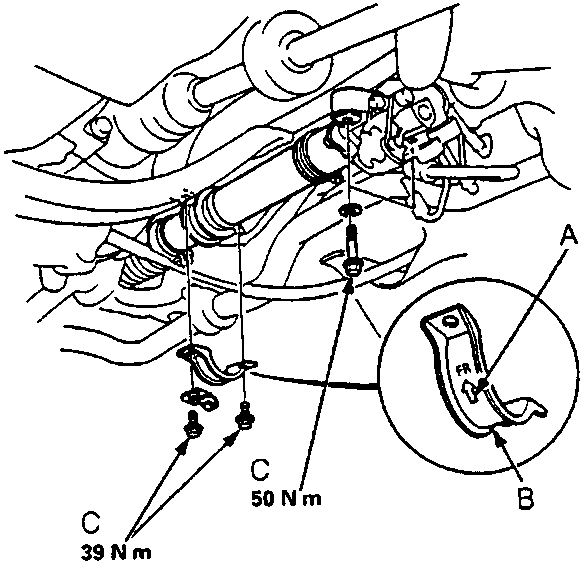

A Arrow Mark

B Holder

C Bolt

57. Install the holder with arrow mark facing forward and tighten the gearbox mounting bolts.
