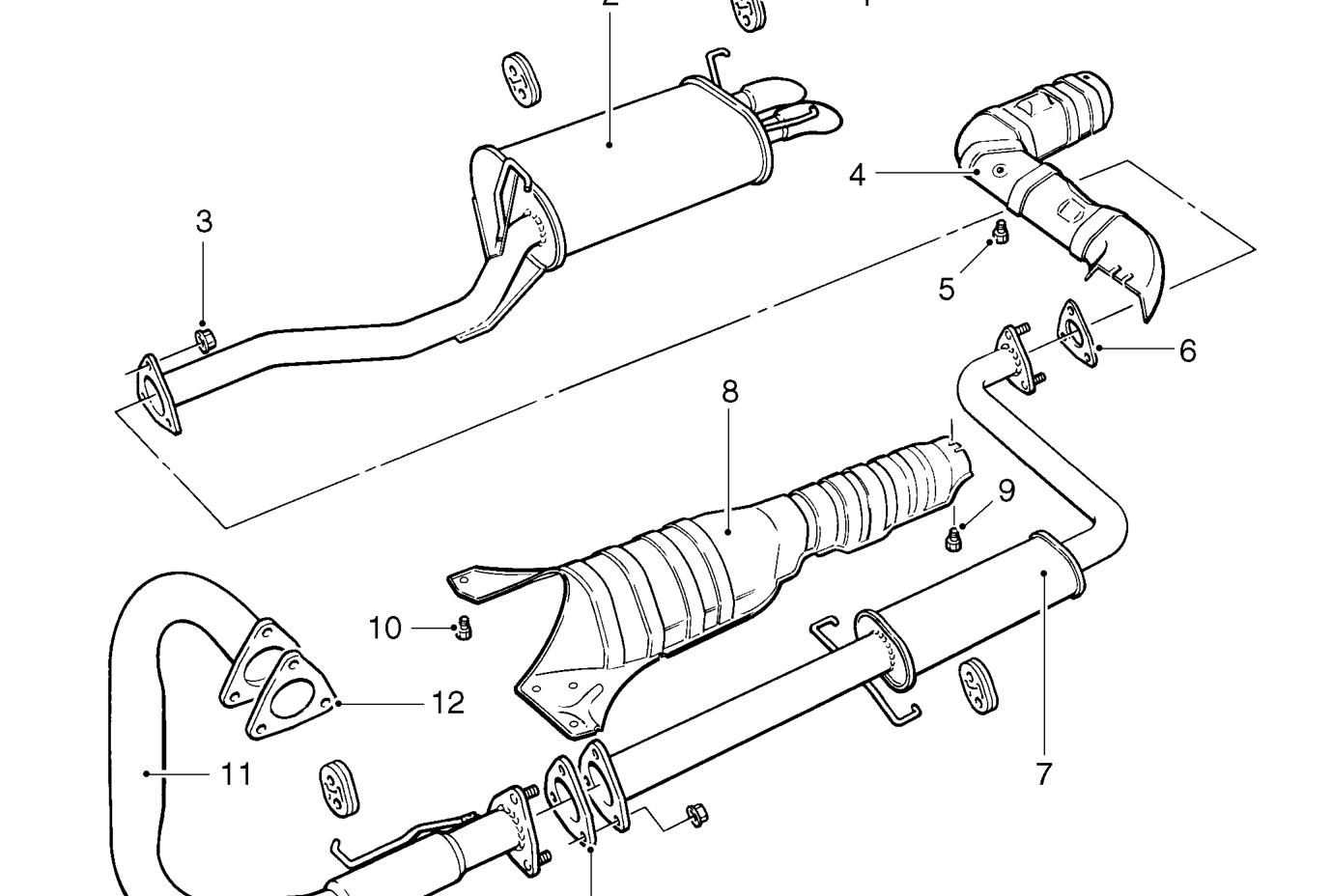

EXHAUST SYSTEM COMPONENTS - DIESEL

1. Mounting rubber - 6 off
2. Exhaust tail pipe
3. Flanged nut - M10 - 6 off
4. Heat shield
5. Bolt - heat shield - M6 - 2 off
6. Gasket
7. Exhaust intermediate pipe
8. Heat shield
9. Bolt - heat shield - M8 - 2 off
10. Bolt - heat shield - M6 - 4 off
11. Exhaust front pipe
12. Gasket

13 Engine
