Inlet manifold control - KV6 engine (Manifold & exhaust systems)

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Description and operation › Inlet manifold control - KV6 engine

Manifold & exhaust systemsInlet manifold control - KV6 engine · page 1 of 2

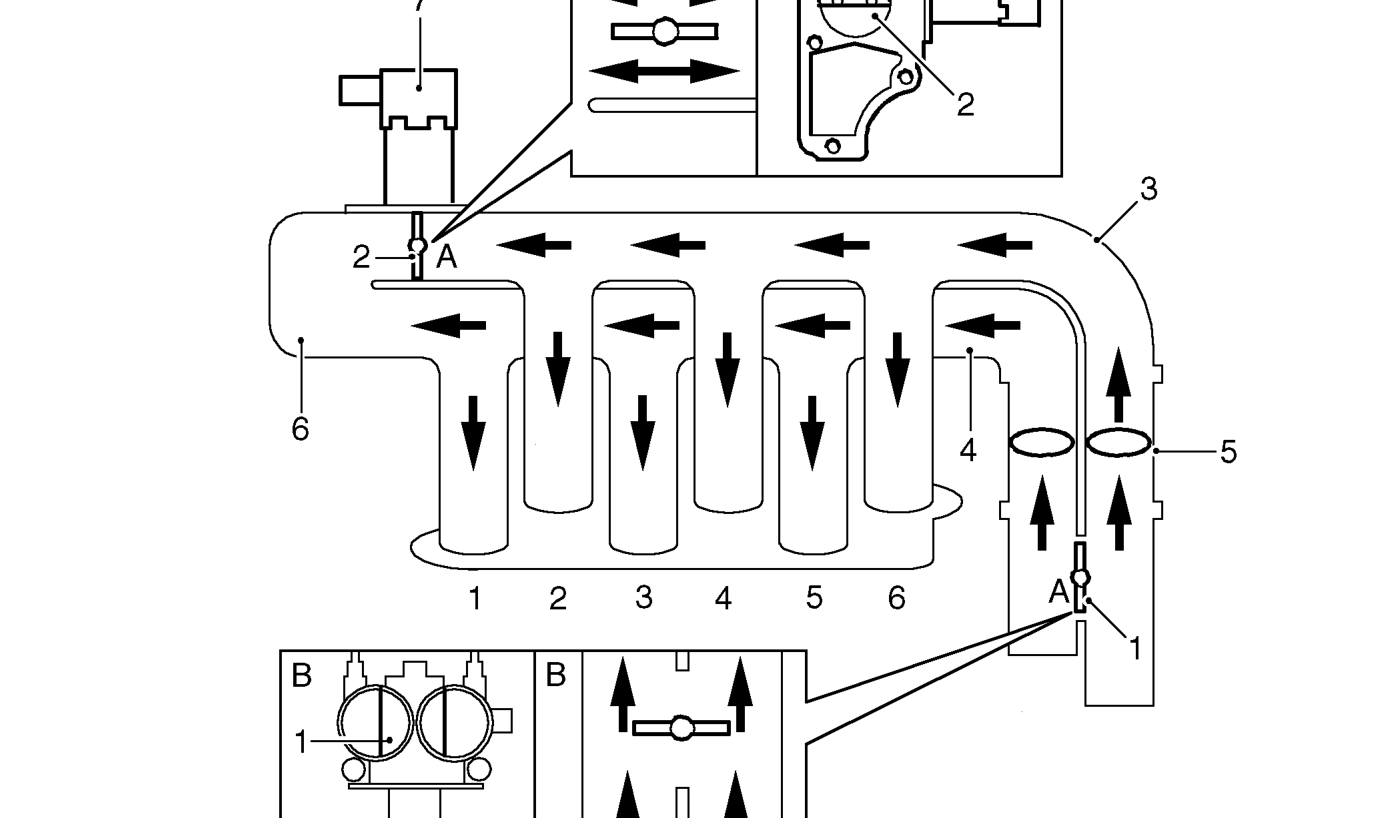

INLET MANIFOLD CONTROL - KV6 ENGINE

A Valve closed B Valve open

1. Connect valve
2. Balance valve
3. Upper tract to cylinders 1 - 3 - 5
4. Lower tract to cylinders 2 - 4 - 6
5. Throttle housing
6. Balance housing
7. Valve motor - VIS control
