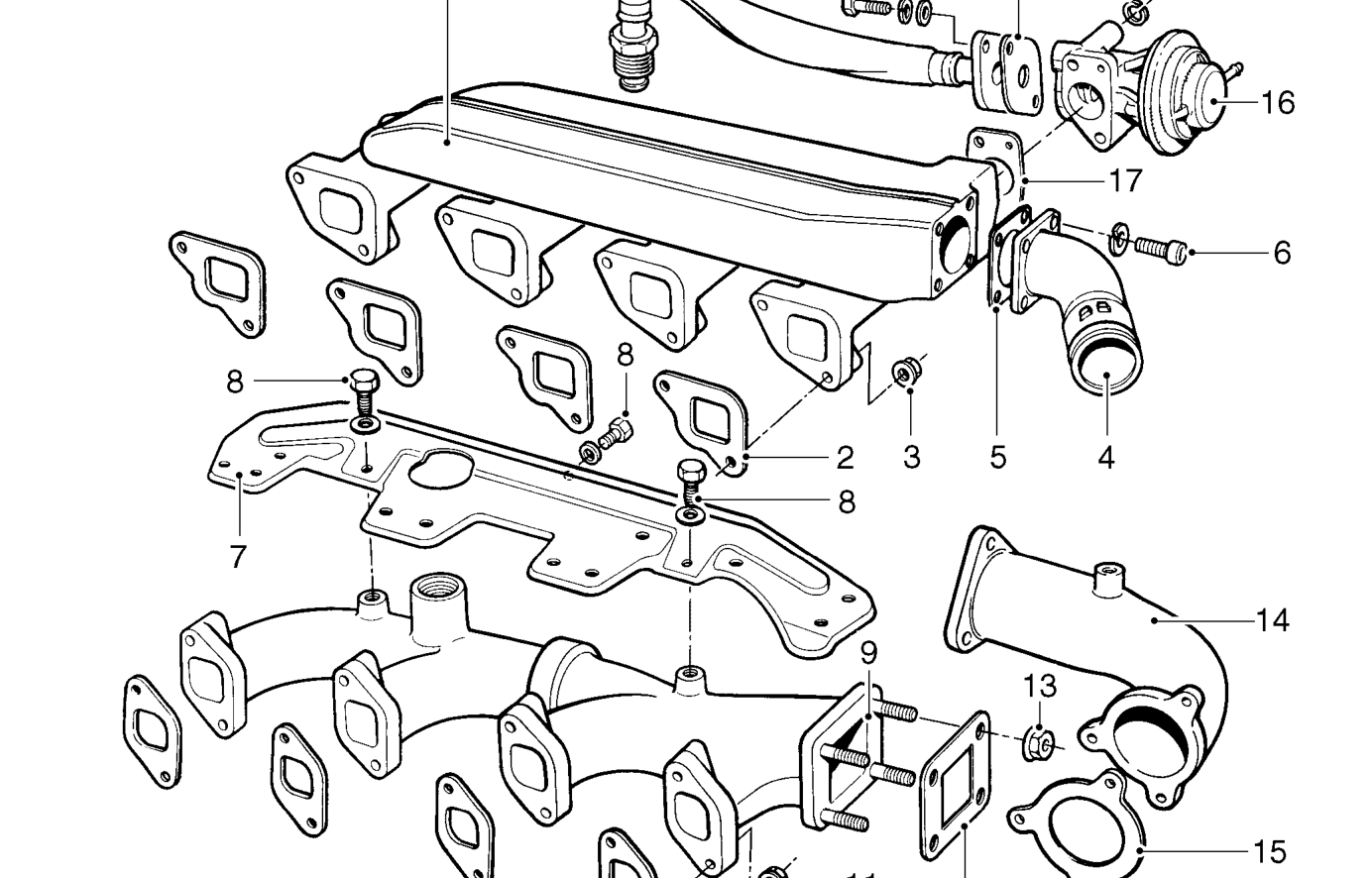

Inlet and exhaust manifolds - diesel (Manifold & exhaust systems)

INLET AND EXHAUST MANIFOLDS - DIESEL

1. Inlet manifold
2. Gasket - inlet manifold - 4 off
3. Nut - inlet manifold - 8 off
4. Inlet elbow
5. Gasket - inlet manifold to elbow
6. Allen screw - 4 off
7. Heat shield
8. Bolt - heat shield - 3 off
9. Exhaust manifold - 2 piece
10. Gasket - exhaust manifold - 4 off
11. Nut - exhaust manifold - 8 off
12. Gasket - turbocharger
13. Nut - turbocharger - 4 off
14. Turbocharger elbow
15. Gasket - turbocharger elbow
16. EGR valve
17. Gasket - EGR valve
18. Bolt - 2 off
19. Lock washer - flat
20. EGR pipe
21. Gasket - EGR pipe
22. Bolt - EGR pipe
